My observatory
DOME:
A 2.5m dia. FRP Dome is set up on the roof of my house. The dome is air conditioned throughout summer and rainy season (June to September).

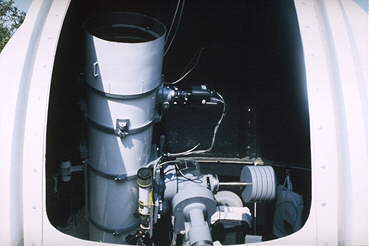

TELESCOPE:
31cm (12 inches) Newtonian reflector, fl=1525mm, F=5. The parabolic mirror was made by I. Tasaka. The equatorial mount has been designed and machined by S. Murasita of Uji-Tentai-Seiki (Uji=name of place near Kyoto, Tentai=Astronomy, Seiki=Precision Instrument). The guide telescope is a 6cm achromatic refractor loaded with ST-4, which is worked at fl=840mm or 1680mm (depending on sky condition).
CCD CAMERA:
Spectra-Source HPC-1 (air cooled). CCD chip: TC-215, 1k x 1k pixels, 12mm x 12mm in size, 16 bits.
SBIG ST-6: my previous camera, transferred to another person at present.
SBIG ST-5 (for planets). CCD chip: TC-255, 320x240, 3.2mm x 2.4mm in size, 14 bits.
SBIG ST-4: my first camera, used as auto guider to date. This is one of the first lots in Japan.
COMPUTER IN THE DOME:
IBM PC/AT convertible, DX2-66MHz with 16 MB RAM, 200 MB disk, 9 inch monitor and MO(Magneto-Optical) disk system.
SKY CONDITION:
This is Tokyo. The light pollution is always terrible. But on a nice blue sky day, you can see Mount-Fuji in west.
Please send e-mail, if you could enjoy my gallery. Any comments, advice (or even one word) will be welcome.
Please push here to send e-mailPlease do not send your message with no subject or a subject "Hi", "Hello", etc.
Kunihiko OKANO
It mignt be removed by junk-mail control.
