| Next and the last step of detailing the engine compartment is the bulkhead. | |||
        |

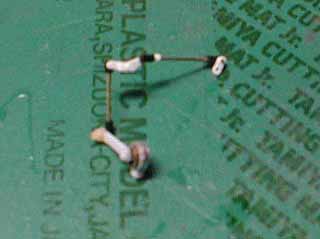

The throttle linkages were
made from various materials. The white pieces are strene, the rods are brass, and the black pieces are vinyl tube. |
 |
|

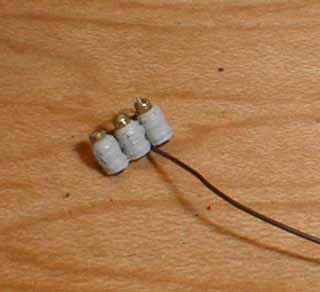

| The E-type series 1 has three hydraulic reservoir tanks, and they were made from various sizes of styrene rod. The sensor cords were also made from electrical wires. |
 |
||
| The tanks and caps were
painted white and black, and they were glued to the bulkhead.
|
 |
||

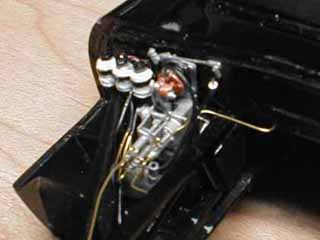

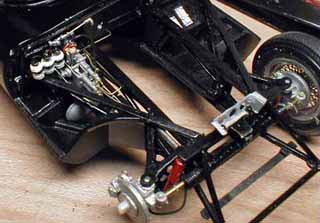

| The hydraulic system is finished. It's a shame that the master cylinder will be hidden under the air intake chamber. |
 |
||

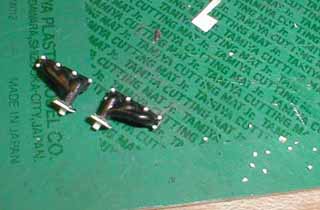

| The headers are basically the kit parts, but the bolt-heads are made by slicing a hex rod. |
 |
||

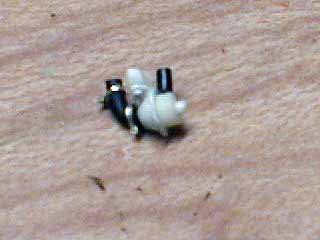

| This heater water control tap was made from styrene rod and vinyl pipe. The mounting block was also made from plastic sheet. |
 |
||

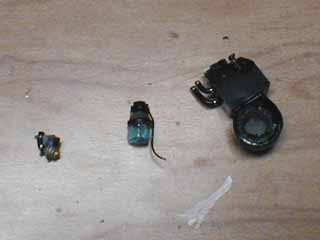

| From left to right, the finished water control tap, windshield washer tank and the heater case. |
 |
||

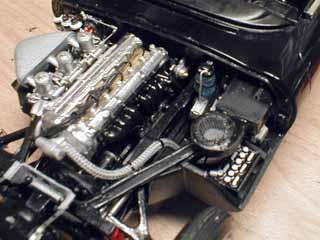

| The three parts shown in the
picture above were installed. The added control tap improved the appearance
of the bulkhead a lot. Also, the electrical wires from the battery and the breather hose was added. |
 |
||
  |
|||
