STRaND-1 磁場ベクトル解析


● (No.787) STRaND-1 磁場ベクトル解析 (2013年3月30日)
 ------------------------------------------------

STRaND-1 magnetic field vector analysis by DK3WN
                                                              (Click to enlarge)

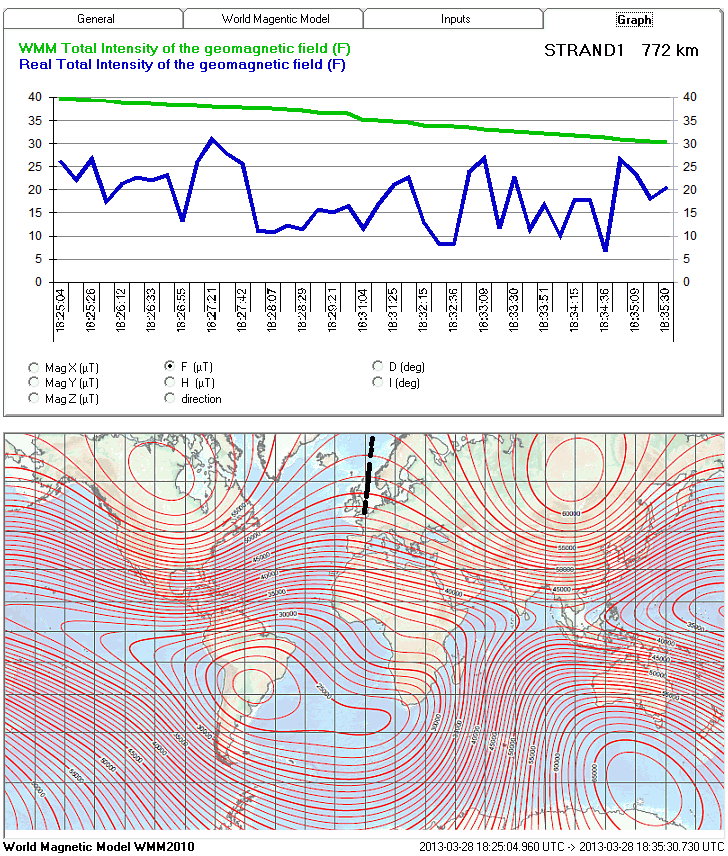

 Germany (Mike)                          Australia (Colin)

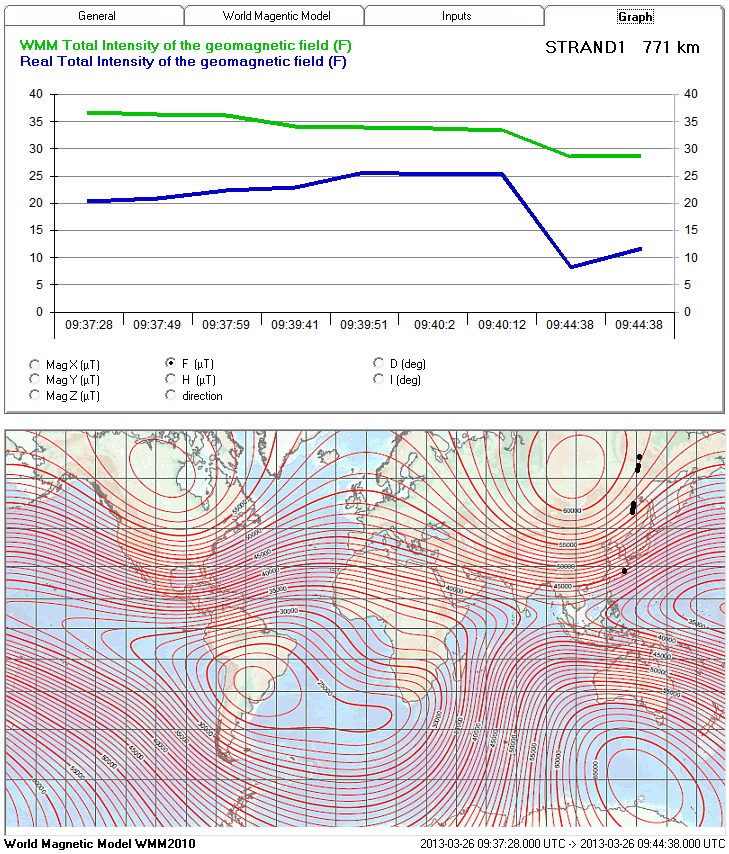

 West Coast US (Ken)                     Japan (Mineo)


私は軌道シミュレーションソフトウェアの開発を終了し、いくつか興味深い解析を
しました。添付の 4つの図を参照してください。それは Colin - オーストラリア・
Ken - アメリカ西海岸・Mineo - 日本・そして Mike - ドイツの解析結果の図です。

WMM2010モデルから計算された F値(地球磁場強度)と、衛星STRaND-1 によって送信
された (x, y, z軸の磁場から計算された)実際の F値を見ることができます。それ
は、ここヨーロッパと日本の違いがわかって大変興味深いものです。(訳注,緑:WMM
2010モデルF値、青:STRaND-1実測F値。なお、WMMモデル2010 については補足参照)

私は後で、実際の F値カーブを滑らかにするため、Spline関数を追加しようと考え
ています。また、メルカトル図法への y軸変換に問題があるようで、世界磁場地図
のプロットはそれほど正確ではありません。後で修正しようと思います。

Chris によると、磁場テレメトリ値が測定されていないようなので、磁力計からの
生の値なのか疑問だということです。

さらに私は、テレメトリデコーダソフトウェアを最適化しました。私は OBCの時間
調整値を計算し、"本当の"時間を再計算できるようにしました。このようにして私
は、Mineo と Ken のテレメトリファイルのタイムスタンプを得ました。 Colin と
私は、KISSファイルにタイムスタンプを追加するソフトウェアを使って、後で処理
するための正確な時間を持っています。

[原文]
Subject: STRaND-1 magnetometer data analysis
From: Mike Rupprecht
Date: Fri, 29 Mar 2013 19:45:50 +0100

Hi all,

I finished my orbit simulation software and did some interesting analyses.
See attached 4 screenshots. These data are from Colin - Australia, Ken-
West Coast US, Mineo - Japan und Mike.

You can see the calculated F value from the WMM2010 model and the real F
(calculated by mag x, y, z) sent by STRaND. It is very intersting to see
the deviation here in Europe and in Japan.

Maybe I will add a spline function to smooth the real F curve later.

The plots in the world mag map are not very precise because I have some
issues with the y conversion into mercator projection. Will fix that later.

@Chris: I assume the mag telemetry values are not calibrated, so we have
the raw values from the magnetometer?

Additionally I optimized the telemetry decoder software. I calculated
the time offset of the OBC clock and can now recalculate the "real" time.
In this way I got the timestamp for Mineo's and Ken's telemetry file.
Colin and I using a software which adds a timestamp to the kiss file -
so we have a accurate time for later processing.

So, I wish you all a great Easter time.
Best wishes
Mike


[補足1]
 World Magnetic Model
 NOAA National Geophysical Data Center
 http://www.ngdc.noaa.gov/geomag/WMM/DoDWMM.shtml

[補足2]
 STRaND-1 Telemetry Decoder by DK3WN
 http://www.dk3wn.info/files/strand1.zip

[補足3]
【地磁気の観測】「やさしい解説」 by JE1CVL
 http://heiseiturezuregusa.blog.ocn.ne.jp/a/2013/04/41_5934.html

[補足4]
 国土地理院 地磁気測量
 気象庁 地磁気観測所
 京都大学大学院理学研究科附属地磁気世界資料解析センター
