Fedora8



■IBM Aptiva-e6j

--------------------------------------------------------
IBM Aptiva-e6J
Intel 450MHz Pentium2 Processor
384MB SyncDRAM
13.5GB Hard Drive
4X DVD-ROM
Original OS:Windows98

--------------------------------------------------------
Above PC had been often freezed and celeron 400MHz is much slow for up-dated software. that' why I was intended to use another newer PC. but Linux bring back to his life.

参考図書 reference book

日経Linux 2008年5月号の付録だったと思う。DVD-ROM/Fedora 8 最新版(WereWolf)でインストール

I bought a monthly magazine/Nikkei Linux. They attached a install DVD on it.

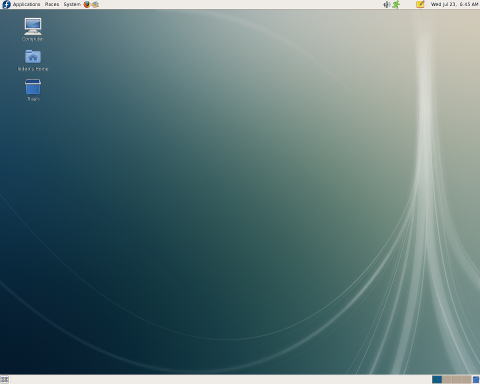

Fedora8 opening screen

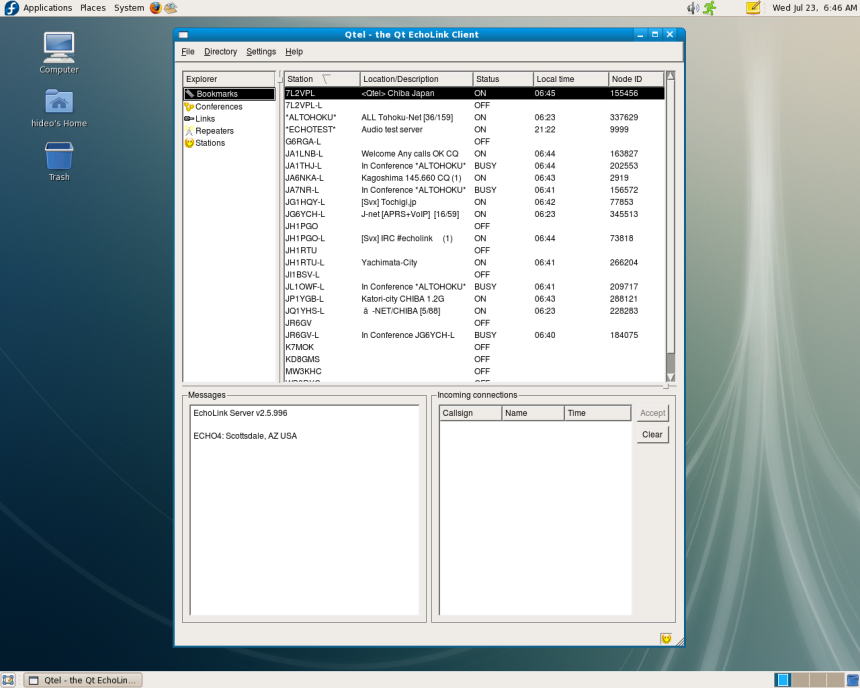

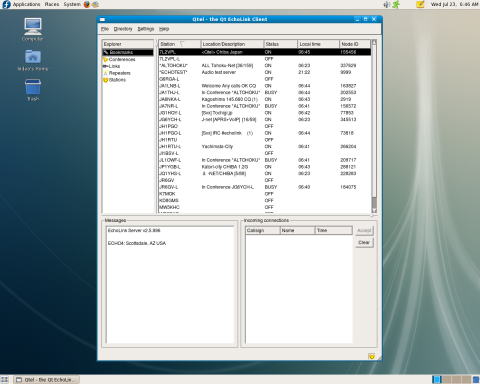

Qtel のインストール(Qtel---EchoLink Client on Linux operating system)

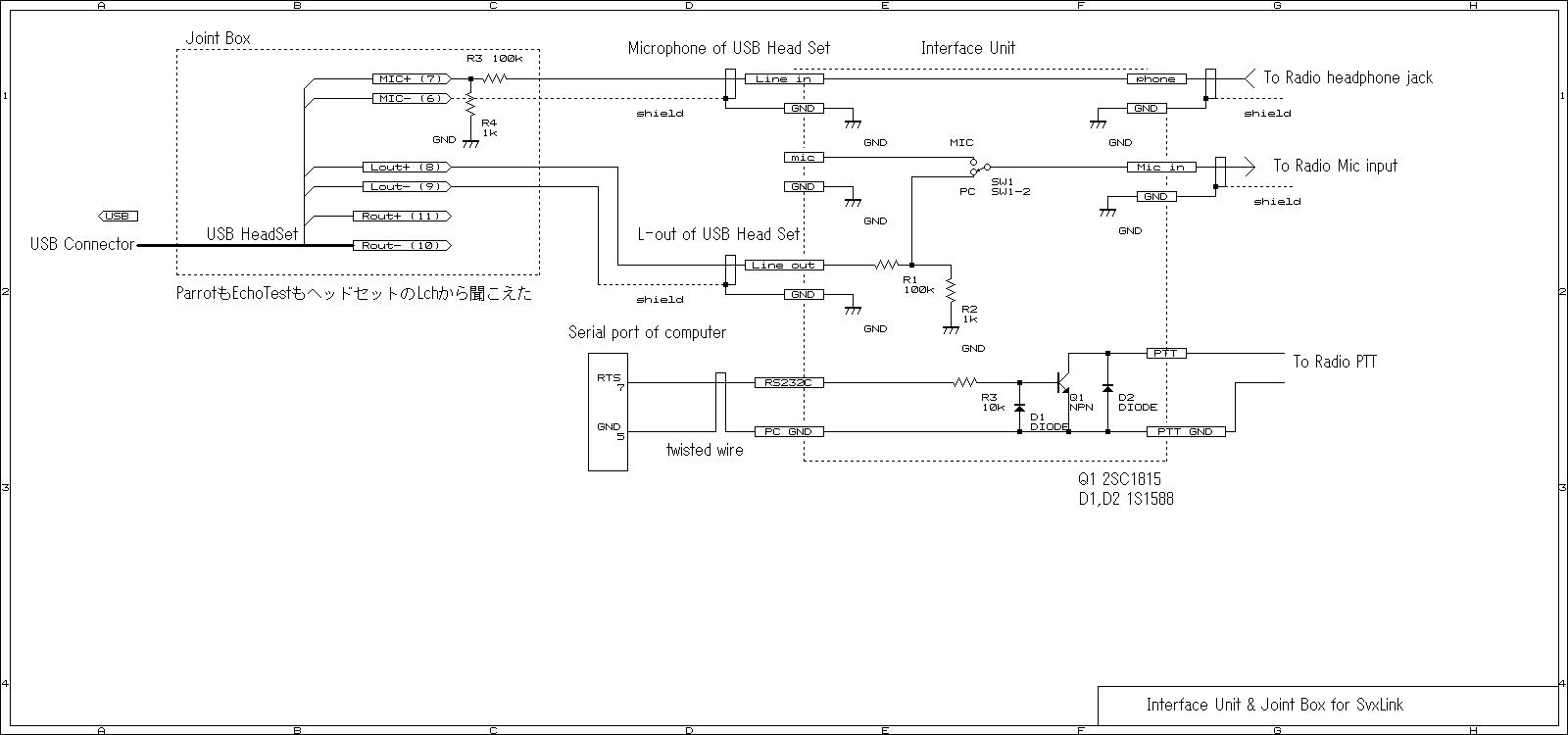

ヘッドセット(Logicool、型番はU400)とVoipインターフェースとの接続図

<for installing a SvxLink server/EchoLink node>
Unfortunately, Fedora8 didn't recognize buit-in sound card and I didn't use its sounds function at all.
I tried a USB-headset and that was ok. I didn't like to cut the part of mic and phone but I did it finally.

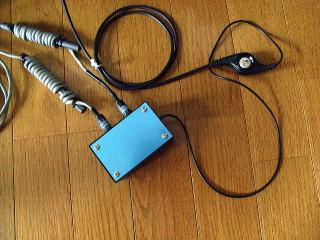

ヘッドセット(Logicool、型番はU400) I cut the cable of head-set and jointed it to the voip interface.

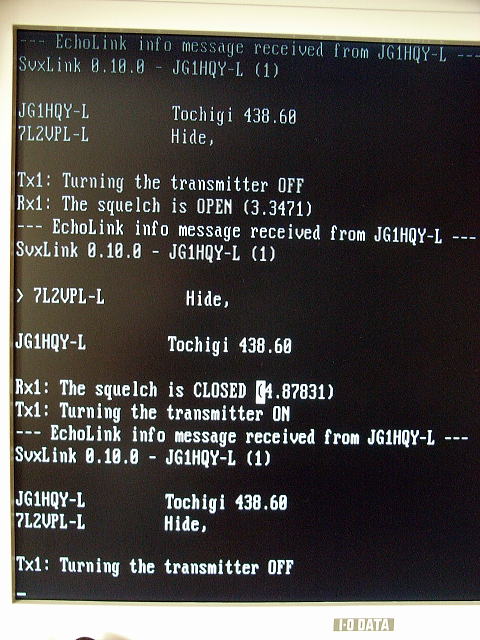

SvxLink screen
