This is a collection of vintage deep keel boat under 30 ft. Because of small accommodation space they are suitable for day sailor.
Alerion is build in US east coast. It has a beautiful sear line. It is designed for single handed sailor.
Alerion 28

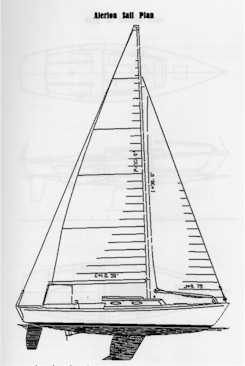

Plan of Alerion 28
Great Harbor 26 has same design philosophy like Alerion 28.

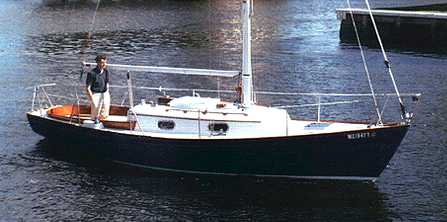

Great Harbor 26

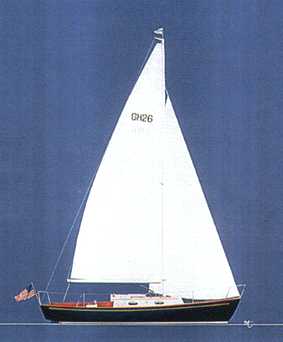

Plan of Great Harbor 26
Seaward 25 is a British made trailable boat.(Not trailable in Japan)

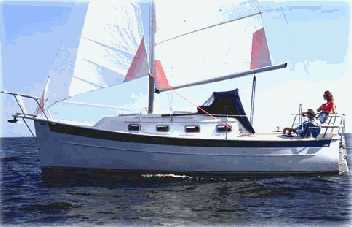

Seaward 25
Name | Alerion28 | Great Harbor 26 | Seaward 25 |
LOA(INCLUDING BOWSPRIT) | 28'73"(8.61m) | 26'0"(7.92m) | 26'9"(8.46m) |
LOD | na | na | na |
LWL | 22'10"(6.96m) | 20'6"(6.25m) | 23'(8.05m) |
Beam | 8'2"(2.49m) | 7'10"(2.39m) | 8'4"(2.54m) |
Draft | 4'6"(1.37m) | 5'0"(1.52m) center board down | 4'2"(1.27) bluewater model |
Mast Abo. DWL | na | na | 33'(10.07m) |
Displacement | 1,980kg | 1,631 kg | 3,600 (1,636kg) |
Ballast | 900kg | 672 kg | 1,200 (545 kg) |
Ballast/Displacement | 45.5 % | 41.2 % | 33.3% |
(LOA+LWL)/(2 x Displacement1/3) (m / ton1/3) | 6.2 | 6.02 | 7.01 |
Sail Area | 32.8 sq.m | approx. 30.5 sq.m | 280sq.ft (26 sq.m) |
Sail Area/Displacement2/3 (m2 / ton2/3) | 20.80 | 22.01 | 18.73 |
Auxiliary Power | Yammer1GM (9ps) | na | Yanmar 2GM20 18ps |
Power/Displacement2/3 (ps/ton2/3) | 5.71 | na | 12.96 |
Fuel | 22.7 ltr | na | na |
Water | na | na | na |
Headroom | na | na | 5'9" |
Cabins/Berths | 2/3 | 2/3 | 2/5 |
Builder | U.S. Yacht & Customs | Great Harbor | Hake Yachat, UK |
Designer | Nathaniel Herreshoff | Hank Hinckly | na |
Price | 9,980,000yen CIF Japan w/ inspection and tax | na | 8,430,000yen CIF Japan |
Keel | fin keel w/bulb | fin keel w/bulb | low-aspect keel w/wing aft |
Sail | Fractional Bermuda sloop | Fractional Bermuda sloop | Fractional Bermuda sloop |
Roller furling jib | yes | na | yes |
Main sail furling method | lazy Jack | no | lazy Jack |
Sail included in price | 100% Self tacking Jib and Main w/ lazy Jack | na | 100% Self tacking Jib and Main w/ lazy Jack |
Rigid boom bang | yes | no | no |
Folding propeller | yes | na | na |
Spin pole | option | na | option |
Bilge pump | manual (electirical option) | na | manual (electirical option) |
Head | manual | na | manual |
Auto helm | no | na | no |
DC Refrigerator | no | na | option |
Air condition | no | no | no |
Home Page | usyachts.co.jp | usyachts.co.jp | seawardyachats.com |
2000/7/16
