D-Class Amp PAM8202 用い、Ipod用 Amp 組み立てました。 部品点数少なく、5V電源 8Ω負荷 10%歪 2W/ch no 出力が得られます。(カタログより) |
Featurees ・2 Watts @10% THD per Channel output into a 8Ω load at 5V ・Support speakers or earphone (4Ω to 32Ω) ・Superior low noise without input. ・Supply voltage from 2.5V to 5.5V. ・85% efficiency above. ・Short Circuit Protection. ・Less output capacitor and inductor to save the space and cost. ・Low THD +N ・Low quiescent current. <10mA |
Parameter | Condition | Min | Typ | Max | Units |
---|---|---|---|---|---|
Vdd Range | 2.5 | 5 | 5.5 | V | |
Vdd Quiescent current | Each Channel | 10 | mA | ||
SW On Resistance | Vdd=5V | 0.4 | Ω | ||
SW Frequency | No input Signal | 500 | kHz | ||
PSRR | Vdd = 2.5V to 5.5V | 45 | dB | ||
Gain | Vdd = 2.5V to 5.5V 0Ω input Resistor |
10 | V/V | ||
SNR | Vdd=5V, Po=1.5W 8Ω Load |
60 | dB | ||
Input Impedance | 100 | kΩ |

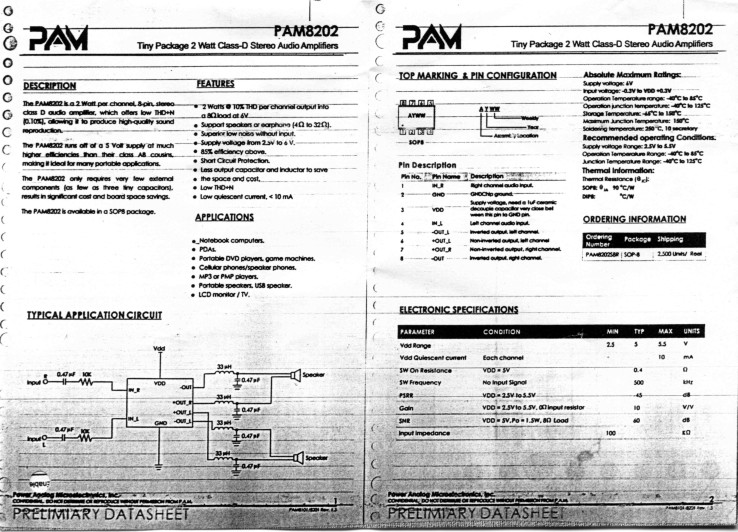

PAM8202 仕様書

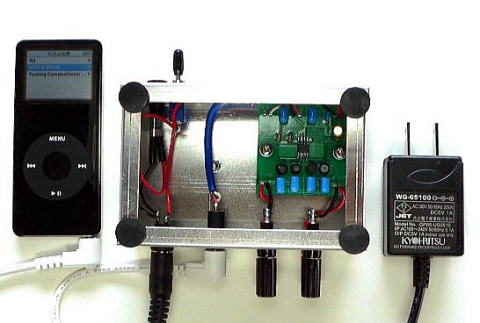

Ipod NANO & PAM8202 Amp、 電源は、外付け 5V AC Adaptor

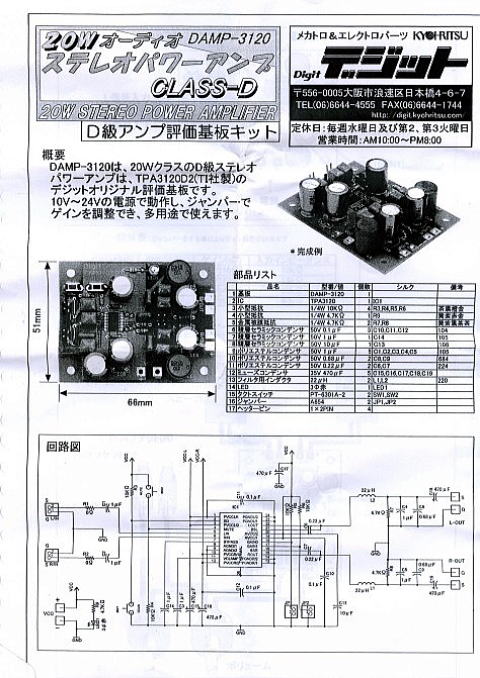

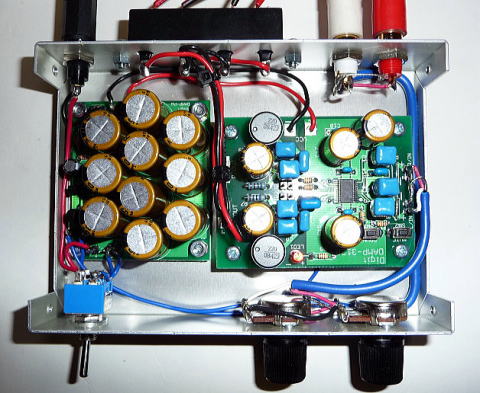

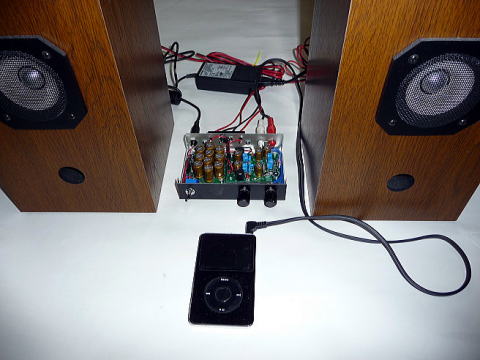

TI 社 TDA3120D2 用いた D-AMP、デジット DAMP-3120
組み立てました。 20W Class-D Stereo Amp です。 2009.06.27

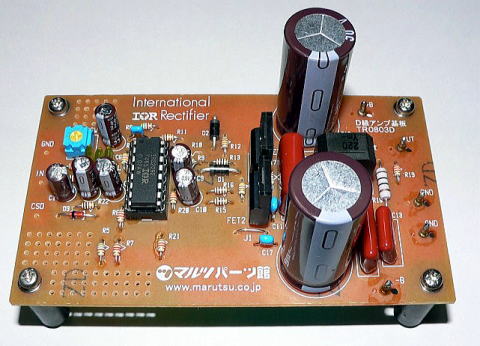

IR Digital Power Amp
トランジスタ技術2008年 3月号付録 D級アンプの製作
IR製デバイス使用しています。
部品購入(マルツパーツ館)し、組み立てました
定電圧電源 ±12V にて動作確認しました。
6Ω負荷 3W出力時 歪(THD+N):0.03%

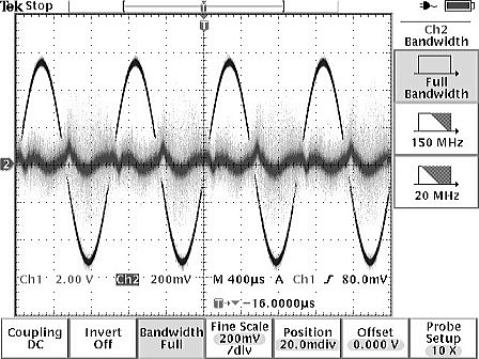

波形は、出力波形と、歪波形を表示しています。
リークも少なく綺麗です。

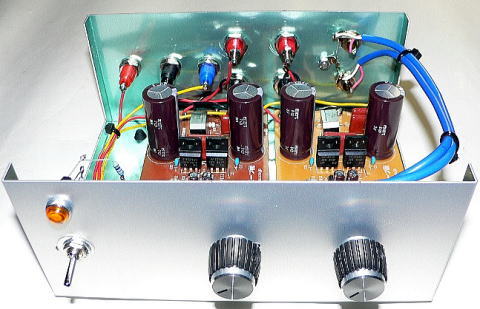

ステレオ、ケースに組み込みました。
