PRISM, STARS, KKS-1, KAGAYAKI, SOHLA-1 打ち上げ情報


● (No.608) PRISM, STARS, KKS-1, KAGAYAKI, SOHLA-1 打ち上げ情報 (2009年1月11日)
 ------------------------------------------------------------------------------

打ち上げ:2009年1月21日 12時54分(JST) [1月23日延期]
ロケット:H-IIA F15
射場:種子島宇宙センター
ペイロード:GOSAT (温室効果ガス観測技術衛星) いぶき


相乗り衛星
Satellite              Downlink     Beacon      Mode          Callsign
---------              -----------  ----------  ------------  -------------
KAGAYAKI (Solan Co.)   437.375      437.375     FSK9k6,CW
STARS (Kagawa Univ.)   437.485/465  437.305/275 FM,CW         JR5YBN/JR5YBO
KKS-1 (Tokyo MCIT)     437.445      437.385     AFSK,CW       JQ1YYY
PRISM (Tokyo Univ.)    437.425      437.250     AFSK,GMSK,CW  JQ1YCX
SOHLA-1 (ASTRO TECH.)  437.505      437.505     AFSK,CW       JL3YUS
SPRITE (Tohoku Univ.)  Scientific observation satellite
SDS-1 (JAXA)           Small demonstration satellite


ソラン(株)
 「KAGAYAKI (かがやき)」
  http://www.sorun.co.jp/kagayaki/top.html
香川大学
 「STARS (空海 KUKAI)」
  http://stars1.eng.kagawa-u.ac.jp/
東京都立産業技術高等専門学校 (東京都立航空高等専門学校)
 「KKS-1 (輝汐 KISEKI)」
  http://www.kouku-k.ac.jp/~kks-1/
東京大学
 「PRISM (ひとみ)」
  http://www.space.t.u-tokyo.ac.jp/prism/main.html
東大阪宇宙開発協同組合
 「SOHLA-1 (まいど)」
  http://www.sohla.com/index.php
東北大学
 「SPRITE-SAT (スプライト観測衛星)」
  http://www.astro.mech.tohoku.ac.jp/SPRITE-SAT/
宇宙航空研究開発機構
 「SDS-1 (小型実証衛星)」
  http://www.jaxa.jp/pr/brochure/pdf/04/sat26.pdf


[参考]
JARL 日本のCubeSat衛星
  http://www.jarl.or.jp/Japanese/7_Technical/cubesat/cubesat.htm
JAXA 打上げ特設サイト
  http://www.jaxa.jp/countdown/f15/index_j.html
JAXA 打上げ情報
  http://www.jaxa.jp/countdown/f15/overview/sub_payload_j.html
  http://www.jaxa.jp/countdown/f15/overview/ibuki_j.html
  http://www.jaxa.jp/countdown/f15/overview/h2a_j.html
  http://www.jaxa.jp/projects/sat/gosat/index_j.html


※ この広報をもとに、より詳細な情報が公開されました。
  http://showcase.netins.net/web/wallio/CubeSat.htm

※ 打ち上げシーケンス
  http://www.jaxa.jp/countdown/f15/overview/sequence_j.html

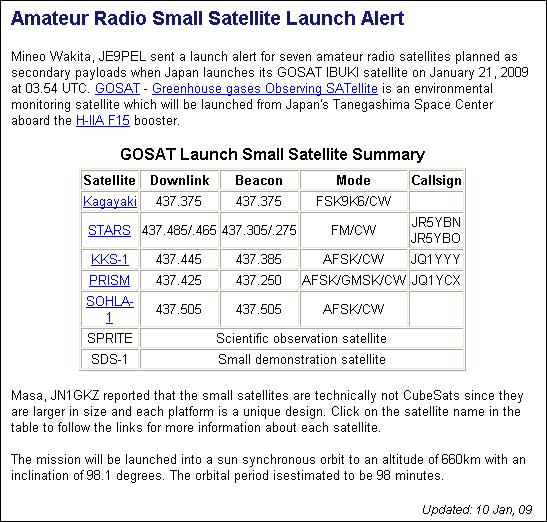

※ AMSAT-News
  http://www.amsat.org/amsat/archive/amsat-bb/48hour/msg68892.html



(C) http://www.amsat.org/amsat-new/index.php



SB SAT @ AMSAT $ANS-011.01
Launch Alert for Seven Small Satellites on January 21

AMSAT News Service Bulletin 011.01
>From AMSAT HQ SILVER SPRING, MD.
January 11, 2009
To All RADIO AMATEURS
BID: $ANS-011.01

Mineo Wakita, JE9PEL sent a Cubesat launch alert for seven amateur
radio satellites planned as secondary payloads when Japan launches
its GOSAT IBUKI satellite on January 21, 2009 at 03.54 UTC.

GOSAT - Greenhouse gases Observing SATellite is an environmental
monitoring satellite which will be launched from Japan's Tanegashima
Space Center aboard the H-IIA F15 booster.

Information about the primary mission can be found on-line at:
http://www.jaxa.jp/countdown/f15/overview/ibuki_e.html
http://www.jaxa.jp/projects/sat/gosat/index_e.html

Information about the launch vehicle can be found on-line at:
http://www.jaxa.jp/countdown/f15/overview/h2a_e.html

The small satellite palyload will consist of:

Satellite   Downlink     Beacon      Mode         Callsign
---------  -----------  ----------- --------    --------------
KAGAYAKI   437.375      437.375     FSK9k6/CW
STARS      437.485/465  437.305/275 FM/CW        JR5YBN/JR5YBO
KKS-1      437.445      437.385     AFSK/CW      JQ1YYY
PRISM      437.425      437.250     AFSK/GMSK/CW JQ1YCX
SOHLA-1    437.505      437.505     AFSK/CW
SPRITE     Scientific observation satellite
SDS-1      Small demonstration satellite

(Ed. note - this table and all links can also be found on the
 main AMSAT web page http://www.amsat.org/ - see the bottom story.)

Masa, JN1GKZ reported that the small satellites are technically not
CubeSats since they are larger in size and each platform is a unique
design.  He provided the following links to provide more information
about each satellite.

Kagayaki 31x31x35cm, 28kg
  http://www.sorun.co.jp/kagayaki/top.html   (sorry, Japanese only)

STARS - Space Tethered Autonomous Robotic Satellite
  KU (Mother Satellite) 16x16x25cm
  KAI (Daughter Satellite) 16x16x15cm
  http://stars1.eng.kagawa-u.ac.jp/english/index.html

KKS-1 Kouku-Kousen-Satellite-1 15x15x15cm, 3kg
  http://www.kouku-k.ac.jp/~kks-1/   (sorry, Japanese only)

PRISM Pico-satellite for Remote-sensing and Innovative Space Missions
  20x20x40cm, 8kg
  http://www.space.t.u-tokyo.ac.jp/prism/main-e.html

SOHLA-1
  http://www.sohla.com/docs/index.php

They will be launched into a sun synchronous orbit to an altitude of
660km with an inclination of 98.1 degrees.  The orbital period is
estimated to be 98 minutes.

[ANS thanks Mineo Wakita, JE9PEL and Masa, JN1GKZ for the
 above information]


PRISM 初期軌道要素

東大の管制局から連絡がありました。
初期軌道要素はロケット打上げ成功確認後に一般公開されるということです。
日本上空最初のパスは、打上げ当日14:30(JST)頃になると予想されています。
PRISM 初期軌道要素は、 http://prismblog365.blog14.fc2.com/ において
公開される予定です。同時に打上げられる他の衛星も、しばらくは同じ軌道
要素で追尾できるものと思います。打上げまであと一週間。
打上げ成功を祈念しています。

軌道予想
21Jan  14:39-14:49JST  343-247  Mel  8.9
21Jan  23:56-00:08JST  147-357  Mel 72.6
22Jan  01:33-01:44JST  205-326  Mel 15.2
(C) http://stars1.eng.kagawa-u.ac.jp/news.html

21Jan  14:33JST
21Jan  22:17JST
21Jan  23:50JST
22Jan  01:28JST
(C) http://prismblog365.blog14.fc2.com/



(C) http://www.jaxa.jp/countdown/f15/overview/sequence_j.html


上記の H-IIA F15 の打上げシーケンスの経過時間をよく見てみると、

 SOHLA-1  分離信号送出 32:41
 KAGAYAKI 分離信号送出 36:51
 KKS-1    分離信号送出 41:01
 STARS    分離信号送出 45:11
 PRISM    分離信号送出 49:21

とあります。つまり、新小型衛星の最初の分離から最後の分離まで約17分も
かかっています。ということは、一つの軌道要素だけでは全衛星を追尾する
のは無理で、個々の初期軌道要素が必要になる、ということのようです。


『新しい小型衛星に親しもう』 by JE1CVL

@ http://heiseiturezuregusa.blog.ocn.ne.jp/a/2009/01/114_f0f5.html
A http://heiseiturezuregusa.blog.ocn.ne.jp/a/2009/01/115_8180.html
B http://heiseiturezuregusa.blog.ocn.ne.jp/a/2009/01/116_1c0b.html
C http://heiseiturezuregusa.blog.ocn.ne.jp/a/2009/01/117_a914.html
D http://heiseiturezuregusa.blog.ocn.ne.jp/a/2009/01/118_c018.html


PRISM CW format

Japanese Version
http://www.space.t.u-tokyo.ac.jp/gs/satinfo.html
http://www.space.t.u-tokyo.ac.jp/gs/application.html

English Version
http://www.space.t.u-tokyo.ac.jp/gs/en/satinfo.html
http://www.space.t.u-tokyo.ac.jp/gs/en/application.html


STARS CW format
http://stars1.eng.kagawa-u.ac.jp/gsweb/index.cgi?p=Top;f=CW_format.pdf


KKS-1 CW,AFSK format
http://www.kouku-k.ac.jp/~kks-1/kks-info.htm
