Chipset Maker |
NVIDIA |
|
Target
Groups
|
- For game users who are looking for high quality
and performance
- For home users to edit their favorite films
- For power users who love to enhance their card performance
- For the advanced 3D application users
|
|
Product
Specifications
|
- Gainward’s award winning High-Peformance/Wide-Bandwidth™
hardware design integrating NVIDIA’s latest GeForce™4
Ti 4200-8X graphics processor and 128MB of the fastest
DDR memory
- Default Core Clock/Memory Clock：250MHz/500MHz
- Gainward’s unique red powerful cooling Fan
- Support Video capture from TV, VCR, DV or camcorder with
Composite and S-Video connectors
- Providing a video-out connector or flicker free functionality
both composite vidoe and s-video for PAL and NTSCT for smooth
video recording and video editing
- Accelerated DVD playback with enhanced motion compensation
in hardware. A powerful package of Video-Editing-Software is
also included
- Includes Gainward’s EXPERTool™ utility for customized
performance enhancements and efficient desktop management. Performance
enhanced, accelerated software drivers for all major operation
systems and APIs
- Easy Plug-and-Play AUTORUN installation from CD-ROM, supporting
8X, 4X, and 2X AGP.
- Supports LCD output with DVI connector
- Video-out support (NTSC/PAL) TV system
|
|
Chipset
Features
|
- Integrated NVIDIA GeForce™4 Ti 4200-8X
GPU with AGP 8X
- Supporting 128MB high-speed 128bit
DDR RAM memory
- nView™ Multi-Display Technology provides flexibility and control for using multiple
displays, supporting any combination of desktop VGA monitors,
DVI displays or TV sets
- Shading Rasterizer™ Technology allows software developers to calculate
lighting characteristics on a per-pixel basis in real time
- Integrated Lightspeed Memory Architecture
(LMA) II increases memory bandwidth efficiency for unmatched
performance
- Accuview Antialiasing™ delivers unbeatable visual quality and frames rates
- Video Processing Engine (VPE) enables the highest-quality, full-frame rate, full-screen
HDTV and DVD without requiring a high-performance CPU
- Integrated Second-Generation Transform and
Lighting Engine (T&L) provide a powerful, balanced PC
platform and enable scenes with extremely high polygon counts
- Digital Vibrancy Control™ Technology can adjust color controls digitally to compensate for
the lighting conditions
- Support Video Playback
Architecture The video scalar function provides the ability to
render a video stream in a YUVcolor space onto an RGB graphics
display, either within a window or a full screen.Itsupports YUV
overlay surfaces in off-screen memory.
- AGP 3.0 support
for 8x and 4x and AGP 2.0 support for 4x, 2x, 1x
|
|
Product
Features
|

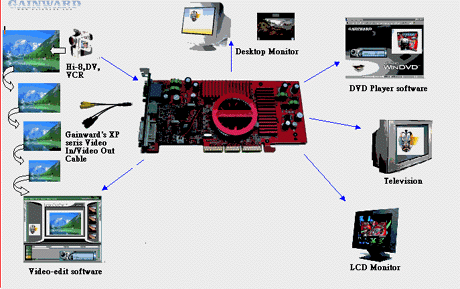

- Gainward’s XP feature for Video-In and Video-Out
plus DVI
Gainward’s award-winning XP feature provides DVI plus two
video-in connectors and two video-out connectors (both composite
video and s-video for PAL and NTSC) for smooth video recording
and video editing including accelerated DVD playback with enhanced
motion compensation in hardware.
- EXPERTool™ Performance Tuning Utility
EXPERTool™ is Gainward’s
performance tuning utility that allows the user to easily adjust
the engine clock and memory clock of any Gainward product from
NVIDIA’s recommended default settings to even higher settings.
Gainward offers the end user the choice to either run the board
in “Safe Mode Setting” or at “Enhanced Setting”
(“Golden Sample™” products only, featuring a more
stable design with faster memory), which offer enhanced real-world
3D performance for higher resolution. Performance tuning is the
most commonly used method among the ultimate power gamers to
extract the utmost performance out of a high quality 3D graphics
card.
|
|
Bundled Accessories |
- Quick Start Manual (available in English/Chinese/Japanese/French/German/Italian)
- Performance enhanced accelerator driver 98/98SE/2000/ME/XP
- Video-In & Video-Out cable
- DVI to CRT connector
- DVD player software： WinDVD by InterVideo
- Video editing software：WinProducer/Wincoder by InterVideo
|
|
Minimum System
Requirement
|
- Intel Pentium II/Pentium III or compatible
CPUs
- 64MB System Memory or above
- AGP Slot (AGP version)
- CD-ROM Drive
|
|
API Support |
- DirectX 8.1
- Direct3D, DirectDraw , DirectVideo
- OpenGL 1.3 for Windows98/98E/XP/2000/NT
|
|
OS Support |
- Windows95/98/98E/2000/ME/XP
|
|
Remarks |
|
