Deep Sky Images by Remote control telescopes
Click on the individual pictures or titles below to see complete pictures
NGC5426/27
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Apr. 12 to 16, 2024, 20:50 (JST).
L:453mim (3min x 151), R/G/B: (3minx8)/(3minx9)/(3minx8), 2x2 binning.
Astrodon E series LRGB filters.
Processed by StelaImage9 and PhotoShop, Richardson-Lucy Deconvolution
All rights reserved by Kunihiko Okano.
NGC5128
T72 provided by iTelescope, in Chile
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16200 CCD camera, FOVpp=0.36"
Mar. 18, 2024, 13:30 (JST).
L:162mim (3min x 54), RGB:15min (3minx5) each, 2x2 binning.
Astrodon E series LRGB filters.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
NGC4038
T72 provided by iTelescope, in Chile
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16200 CCD camera, FOVpp=0.36"
Feb. 17, 2024, 14:11 (JST).
L:144mim (3min x 48), R: 18min (3minx6), GB: 15min (3minx5)each, 2x2 binning.
Astrodon E series LRGB filters.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.

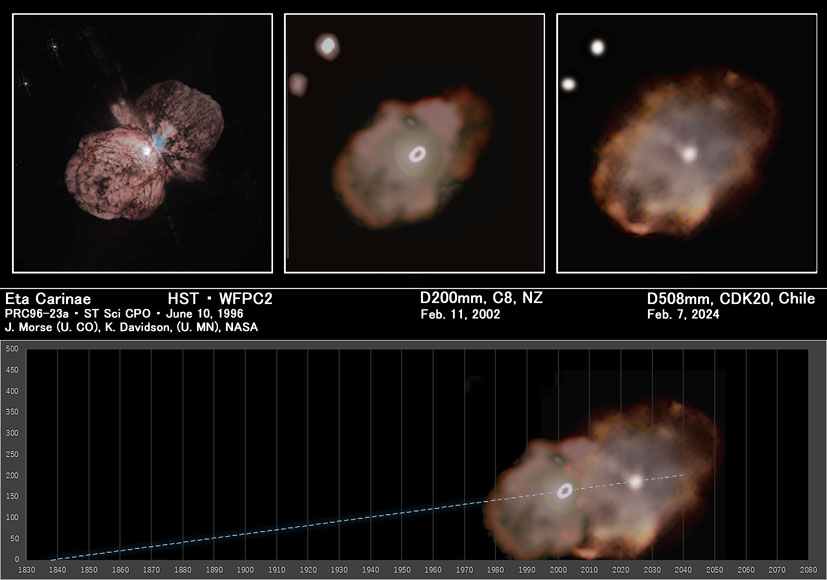

Homunculus Nebula and the Eta carinae
The relative size of the image is determined based on the three stars in the screen, and the accuracy is a few percent.
It has been 28 years since the HST image was taken, so the size has increased by more than 10%.
This change seems consistent with the expansion since the 1838 explosion.
2024: T72 provided by iTelescope, in Chile
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16200 CCD camera, FOVpp=0.36"
Feb. 7, 2024, 15:55 (JST). The 3rd try of this season.
L: 0.02 sec x 40, RGB: 0.05 sec x 20 each.
Astrodon E series LRGB filters.
FCV of the images are 27"x 27"
Processed by StelaImage9, PhotoShop, Richardson-Lucy Deconvolution.
2002: C8, which I carried to NZ.
D=200mm, F10, f=2000mm, SBIG ST-7ME+AO7, EM-200
Feb. 7, 2002
R/G/B : 6sec/9sec/12sec
All rights reserved by Kunihiko Okano.
NGC300
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Oct. 19, 2023, 21:30 (JST).
L:126mim (3min x 42), RGB: 24min (3minx8) each, 2x2 binning.
Astrodon E series LRGB filters.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Sept. 9, 2023, 21:30 (JST).
L:114mim (3min x 38), RGB: 21min (3minx7) each, 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 2214x1515, North is on the right.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
NGC1532
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Dec. 10, 2023, 20:24:07 (JST).
L:120mim (3min x 40), RGB: 21min (3minx7) each, 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 4096x2880, North is up
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
SN1987a and the wide field image for finding it
The magnification section is aligned with the field of view of the famous HST image.
https://upload.wikimedia.org/wikipedia/commons/4/43/Supernova-1987a.jpg
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Dec. 14, 2023, 22:07:45 (JST).
RGB: 15min (3minx5) each, 2x2 binning, Astrodon E series RGB filters.
Reduced size after cropping to 4096x2880, North is up.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
NGC7582, 7590, 7599
T59 & T31 provided by iTelescope, at Siding Spring Obsevatory in Australia
T59: D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
with FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Nov. 10, 2023, 19:40 (JST) by T59.
L:54mim (3min x 18)
T31: D=508mm, F6.8 (F4.4 w/reducer), f=2259mm, Corrected Dall-Kirkham telescope
with FLI PL09001 CCD camera (3056x3056), FOV=55.9'x55.9', FOVpp=1.1"
Nov. 1, 2023, 19:40 (JST) by T31.
RGB: 5min each, 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 3800x2672, North is up.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano..
NGC7599, 7590, 7582, 7552
T31 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8 (F4.4 w/reducer), f=2259mm, Corrected Dall-Kirkham telescope
with FLI PL09001 CCD camera (3056x3056), FOV=55.9'x55.9', FOVpp=1.1"
Nov. 1, 2023, 19:40 (JST) by T31.
L: 21min (3min x 7), RGB: 5min each, 2x2 binning.
Astrodon E series LRGB filters.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano..
NGC7293
Award of "Editor's Choice" at Sky and Telescope Online Gallery (Jan. 2024)
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Oct. 18, 2023, 22:56 (JST).
L:123mim (3min x 41), RGB: 24min (3minx8) each, 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 3000x3000, North is up.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
.
NGC1097
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Dec. 6, 2023, 22:45:32 (JST).
L:123mim (3min x 41), RGB: (3minx7)/(3minx7)/(3minx6) , 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 4096x2880, North is up.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
NGC247 & chain of small galaxies
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Dec. 6, 2023, 20:34 (JST).
L:171mim (3min x 57), RGB: 18min (3minx6) each, 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 4096x2880, North is on the right.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
NGC1313
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Nov. 9, 2023, 19:11 (JST).
L:132mim (3min x 44), RGB: (3minx8)/(3minx7)/(3minx8) , 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 4000x2828, North is up.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
NGC55
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Oct. 10, 2023, 19:30 (JST).
L:81mim (3min x 27), RGB: 18min (3minx6) each, 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 4096x2880, North is up.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano.
NGC1512
T59 provided by iTelescope, at Siding Spring Obsevatory in Australia
D=508mm, F6.8, f=3411mm, Corrected Dall-Kirkham telescope
FLI PL16803 CCD camera (4096x4096), FOV=37.2'x37.2', FOVpp=0.54"
Oct. 7, 2023, 24:00 (JST).
L:207mim (3min x 69), RGB: (3minx7)/(3minx8)/(3minx8), 2x2 binning.
Astrodon E series LRGB filters.
Reduced size after cropping to 2056x2056, North is on the right.
Processed by StelaImage9 and PhotoShop.
All rights reserved by Kunihiko Okano..
