Super Strypi (SPARK)

Argus, EDSN 1-8, HawaiiSat-1, ORS-Squared, PrintSat, STACEM, STU-1, Supernova-Beta


● (No.852) Argus, EDSN 1-8, HawaiiSat-1, ORS-Squared, PrintSat, STACEM, STU-1, Supernova-Beta (2014年12月7日)
 ------------------------------------------------------------------------------------------------

2015年10月29日に、次の衛星が打ち上げられる予定です。(編集 JE9PEL/1)
※ 打ち上げは、2015年11月2日に延期されました。(再び無期限延期)
  12:45JST, 4 Nov 2015, 打ち上げられましたが
  ミッションは失敗したという広報がありました。



(C)Sandia National Lab.

Super Strypi (SPARK) Launch Planned for Nov 2, 2015
The scheduled launch take place between 12-19pm UTC
Pacific Missile Range - Kokole Point, Kauai, Hawaii
http://spaceflight101.com/spacerockets/spark-super-strypi/
http://www.cubesat.org/

ORS-4, the fourth dedicated mission for the Operationally Responsive Space Office,
marks the first launch of the SPARK/Super Strypi rocket in the continued efforts of
ORS program to establish tactical space capabilities making use of small satellites
and launch vehicle that can be launched on short notice.



Argus
Saint Louis University, USA
437.290MHz 1200bps AFSK, 2403.000-2403.400MHz Spread spectrum
http://cubesat.slu.edu/AstroLab/SLU-02__Argus.html



EDSN 1-8
Edison Demonstration of Smallsat Networks, Santa Clara University, USA
437.100MHz 1200bps AFSK, 2401.200-2431.200MHz
http://edsn.engr.scu.edu/
http://www.nasa.gov/centers/ames/engineering/projects/edsn
http://directory.eoportal.org/web/eoportal/satellite-missions/e/edsn



HawaiiSat-1 (HiakaSat-1)
University of Hawaii
Uplinks and Downlinks on both VHF and UHF, 9600bps GFSK
High speed S Band downlink using High Rate Telemetry
Downlink: Data Rate: 1.5Mbps Modulation: QPSK FEC: Viterbi r=1/2,k=7 ITU Emission
http://www.hsfl.hawaii.edu/wordpress/missions-2/hawaiisat-1/



ORS-Squared
COSMIAC at the University, New Mexico
437.325MHz 9600bps GMSK
http://cosmiac.org/space-missions/ors-squared/



PrintSat
Montana State University, USA
437.325MHz 9600bps GMSK
http://www.ssel.montana.edu/printsat.html

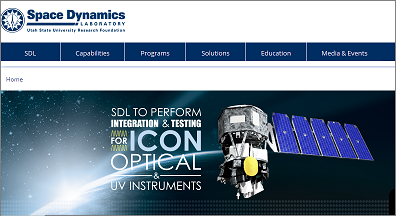

STACEM
Space Dynamics Laboratory / Utah State University, USA
3U CubeSat, 4 deployable fixed solar arrays, batteries
http://www.spacedynamics.org/



STU-1
ShanghaiTech University, China
436.360MHz 9600bps GMSK, 2402.000-2445.000MHz
http://www.hsfl.hawaii.edu/wordpress/missions/leonidas/



Supernova-Beta
Pumpkin Inc, USA
437.570MHz, 1200bps AFSK, 6U
http://www.cubesatkit.com/docs/SUPERNOVA_User_Manual-RevA0.pdf
http://www.cubesatkit.com/docs/SUPERNOVA%28TM%29_6U_BLOCK_III_ICD.PDF

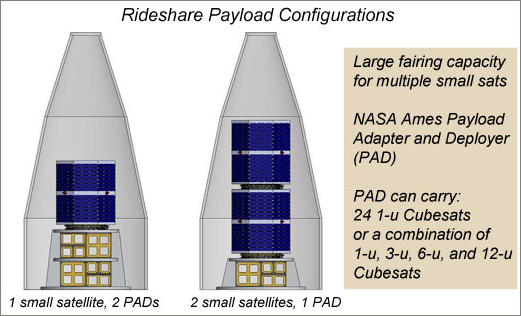

(C)Hawaii Space Flight Lab.


http://www.govsupport.us/orsssea/


Satellite                Downlink            Beacon    Mode
----------------------   -----------------   -------   ------------
Argus                    2403.000-2403.400   437.290   1200bps AFSK
EDSN 1-8                 2401.200-2431.200   437.100   1200bps AFSK
HawaiiSat1 (HiakaSat1)    145.9805           437.2705  9600bps GFSK
ORS-Squared               437.325               .      9600bps GMSK
PrintSat                  437.325               .      9600bps GMSK
STACEM                       .                  .      ?
STU-1                    2402.000-2445.000   436.360   9600bps GMSK
Supernova-Beta            437.570               .      1200bps AFSK
----------------------   -----------------   -------   ------------


[補足] HawaiiSat-1 (HiakaSat-1) TLE

打ち上げは現在、2015年11月2日となっています。
元期日 15306.00000000 は、2015年11月2日00:00:00UTC です。

HawaiiSat-1
1 99999U 00000    15306.00000000  .00002809  00000-0  69295-4 0 00007
2 99999 094.6040 077.7732 0056131 182.2912 079.1822 15.38919159000464

The beacon will transmit every 15 seconds on both UHF and VHF frequencies.
 - Spacecraft Name: HiakaSat
 - Target Launch Date: Nov 2
 - Orbit: 415x490km, 94.7 degrees, Period of 93.6 minutes
 - UHF Beacon: 437.2705MHz (437.26-437.28 MHz), 9600bps GFSK 2W
 - VHF Beacon: 145.9805MHz (145.97-145.99 MHz), 9600bps GFSK 1W
 - Baseline Receive Equipment:
    - Ham Radio IC-9100 or IC-7000, 'Data 2' Port 9600bps FSK Output
    - MixW Software TNC in packet mode w/ VHF 9600bps defaults and
      TNC emulation, or Kantronics TNC using 9600bps FSK port

HiakaSat is a modified HawaiiSat-1.
"Hiaka" means "to recite legends or fabulous stories" in Hawaiian.  It is also
an acronym for Hyperspectral Imaging, Aeronautical Kinematic Analysis Satellite.
So, "Hiaka" is the generic name of "Goddess" that is a Hawaiian myth and legend.

衛星名となっている Hiaka は、ハワイの神話と伝説になっている 「女神」の総称
です。下記サイトの 「ヒイアカの悲劇」 を読むと、ハワイの文化・歴史の一端に
触れることができます。

http://spaceflightnow.com/2015/10/29/first-launch-of-small-class-rocket-on-hold-in-hawaii/
http://www.hsfl.hawaii.edu/wordpress/missions/hawaiisat-1/hiakasat-beacon/
http://www.hsfl.hawaii.edu//wordpress/hiakasat-tle.txt
http://www.legendaryhawaii.com/hiiaka/p01

Launch TBD
打ち上げは無期限延期となりました。理由不明。

TBA  to be announced   未定, 近々通知
TBD  to be determined  未定, 将来決定
TBC  to be confirmed   未定, 確認中

http://spaceflight101.com/date-for-maiden-launch-of-super-strypi-up-in-the-air-as-processing-campaign-drags-on/
http://spaceflight101.com/ors-4-payload-overview/
http://spaceflight101.com/spacecraft/hiakasat/
http://spaceflight101.com/spacecraft/edsn/

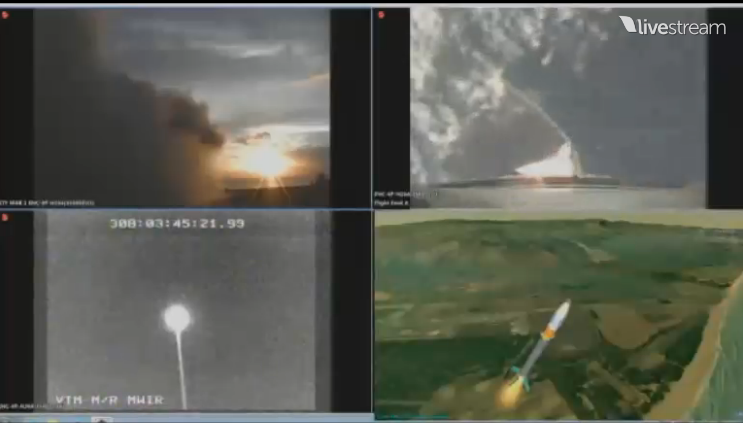

Launch mission failure
12:45JST, 4 Nov 2015, 打ち上げられましたが
ミッションは失敗したという広報がありました。
http://www.youtube.com/watch?v=QsMegDZ_VFQ
http://spaceflightnow.com/2015/11/03/ors-4-mission-status-center/



(C)Spaceflight Now
