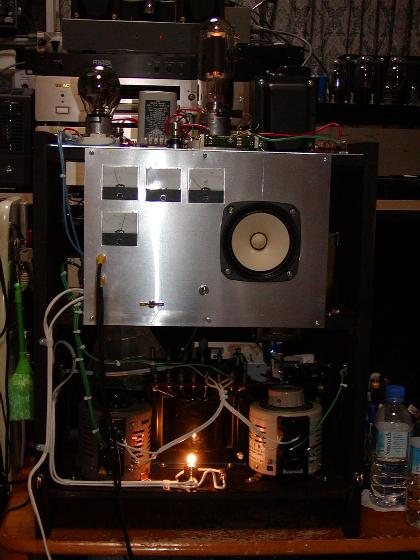

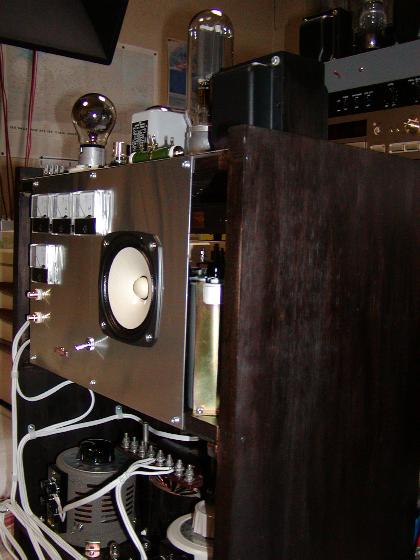

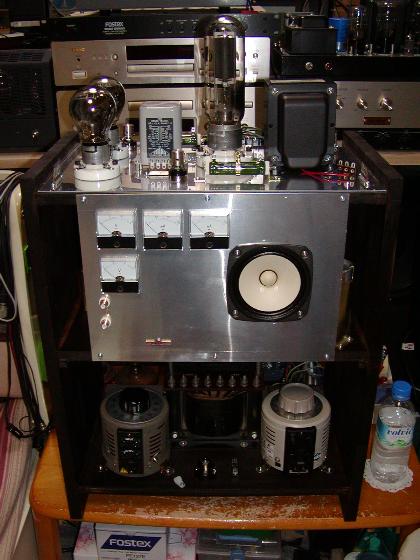

Wood Rack Mount Type UV series transmitting tube tester
AC input / 200V ( single phase ) , Ef / 0V to 14V , If / 10 A max , Ep / 0V to 600V , Ip / 150mA max .
OUTPUT trans / Hammond 1628SE ( Pri : 2.5K , 5K , 10K ohm / Sec : 4 , 8 , 16 ohm ) .
Driver trans / Traid 4043 ( Pri : 556 ohm / Sec : 8K ohm ) .
Power trans / Old trans ( Pri : 200V / Sec : 440V ) .
Choke trans / SEL T-3947 ( 5H 150mA ) .
Capacitors / Oil Filter Caps ( 10mfd / 1000V X 4 ) , Electrolytics Caps ( 450mfd / 250V X 2 ) .
Driver tubes / FullMusic 205D Parallel , Ef / 4.4V ,Ep / 280V , Ip / 24mA , Rf / 1K ohm , Ek / 24V .
Speaker / Fostex FE127E ( 8 ohm ) .
Panel Meter / DC 1500V ( Fs ) , DC 15V ( Fs ) , DC 150mA ( Fs ) , DC 300mA ( Fs ) .
Test
FullMusic 205D Parallel Drive GE UV-211 single tube
Ef / 10V , Ep / 540V , Ip / 30mA , Rf / 1K ohm , Ek / 30V .
