CP-6S Vertical 3.5MHz monoBand Antenna

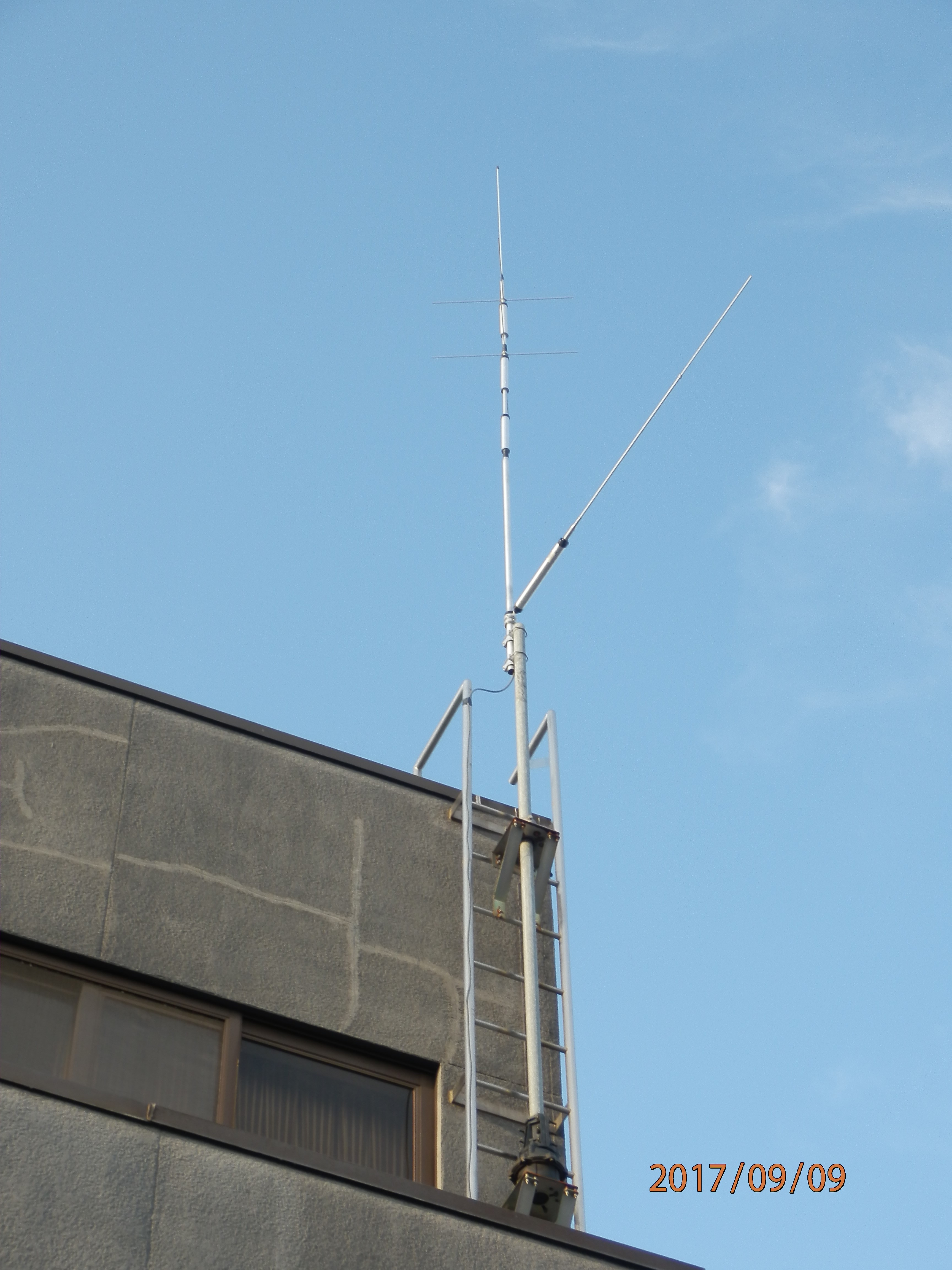

HF 3.5MHz Vertical Antenna .



SWR Actual Measurement (11m high on the ground) ;
3.530MHz : 2.0
3.531MHz : 1.9
3.532MHz : 1.8
3.533MHz : 1.8
3.534MHz : 1.7
3.535MHz : 1.7
3.536MHz : 1.6
3.537MHz : 1.6
3.538MHz : 1.5
3.539MHz : 1.5
3.540MHz : 1.5
3.541MHz : 1.4
3.542MHz : 1.4
3.543MHz : 1.4
3.544MHz : 1.4
3.545MHz : 1.4
3.546MHz : 1.4
3.547MHz : 1.4
3.548MHz : 1.5
3.549MHz : 1.5
3.550MHz : 1.6
3.551MHz : 1.6
3.552MHz : 1.7
3.553MHz : 1.8
3.554MHz : 2.1

Specifications :
Frequency Range / 80m , 40m , 20m , 15m , 10m , 6m
Feed Point Impedane / 50
VSWR / Less than 1.5
Maximum Power Rating / 200W(SSB) , 70W(CW/FM)
Maximum Wind Resistance / 90MPH(40m/sec)
Length / 177"(4.5m)
Radial Element Length / 71"(1.8m)
Weight / 9.9lbs(4.9Kg)
Mast diameter accepted / 1 1/5" - 2 1/3"(30-62)
Design / 6Band Trap Vertical Antenna with Trap Radials
