Router (NTT-MN128-SOHO SL11) connects ISDN phone line and home LAN. It acts as a center hub for the home LAN.
Notebook Windows PC is conected with home LAN through LAN card.
Power Mac 6100/60 with built in Ethernet is connected with home LAN through AAIU-RJ42 transceiver.
Printer is connected with home LAN through print server. It is also connected with Power Mac 6100/60 directly.

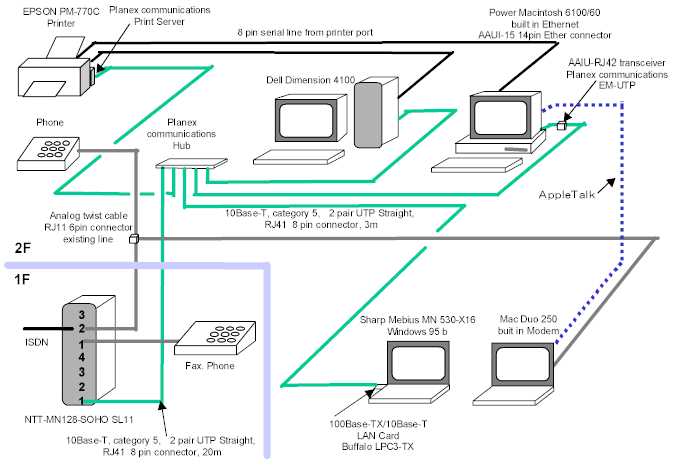

System configuration is shown in the following drawing. Dotterd line is temporaly connections as necesary.
as of March 26, 2000
revised September 1, 2001
