oct up pedal

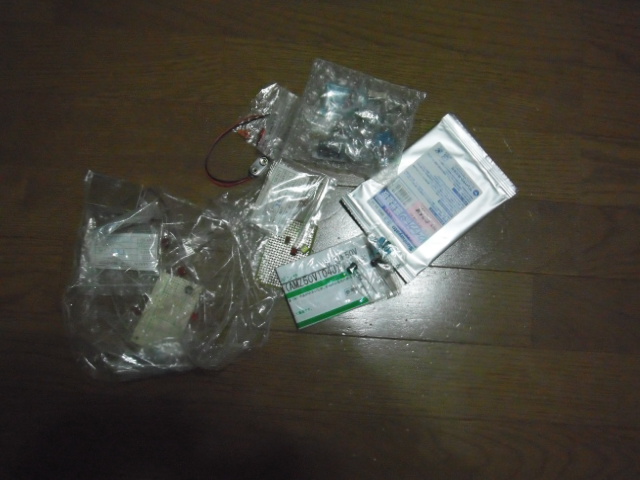

Octava用の部品が届きました。ギャレットオーデォオさんと昔 秋月電子で買った部品を使います。回路は、TonePadからです。
Now I got parts to make octava pedals. I bought them at gyarretAudio amd Akiduki-denshi. Theyare really cool stores. I don't know whether they can send abroad. |
|

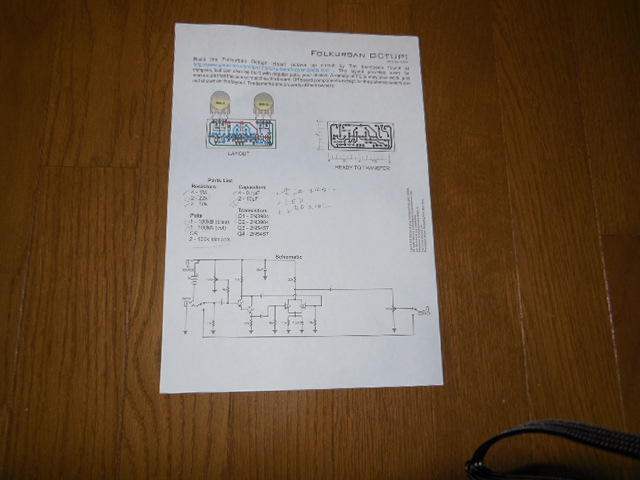

これが今回作る回路図とレイアウト図です。簡単な回路図ですね。 This is the schematicl Looks pretty easy. |
|
感光基盤を使うため、トレーシングペーパーにレイアウト図をうつします。
Trace the layout to use etching solution. |
|

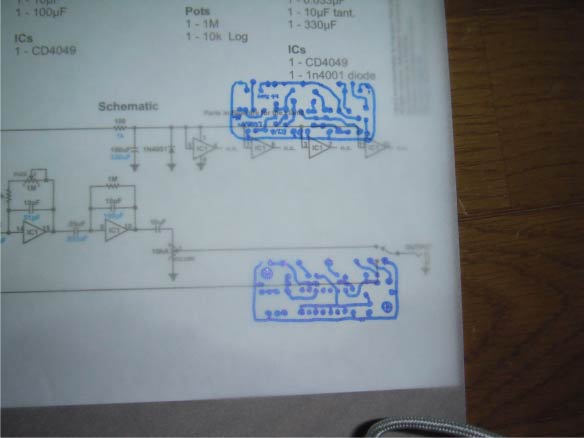

トレーシングペーパーは、透明じゃないのでセルロイドにレイアウト図をマッキーの青で描いて太陽の光に当てました。そして、エッチング液につけても変化なし。、、、 よく調べたら現像液で現像しないと駄目なんですね。久しぶりだからわすれていた。 I re-traced on a celluloid. I put the board into etching liquid, but nothing happend. I researched a little bit and found that I should have put into developing fluid. Damn me. |
