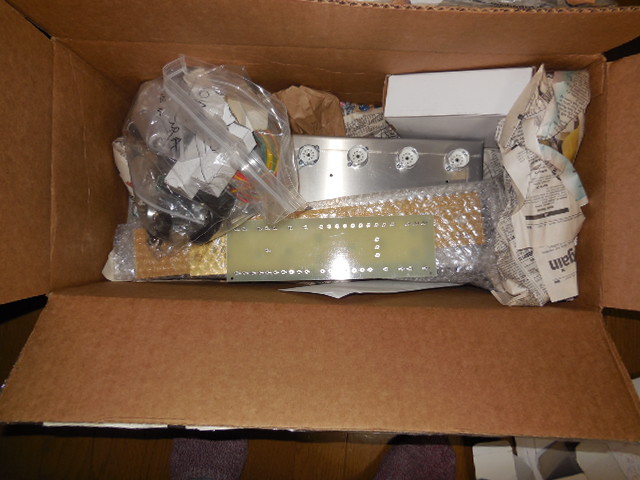

数年前にWebeerで買ってそのままにしておいたもんです。 Thisis a kit wchic I bought in Weber a couple years ago. |
|
回路図とレイアウト図です。アンプを作るのは久しぶりです。
These are schematic and layout. I've never built up amplifier for a long time. |
|
いつも間違うので慎重にハンダ付けをしていきます。
because I always mistakes, I must be very careful.. |
|

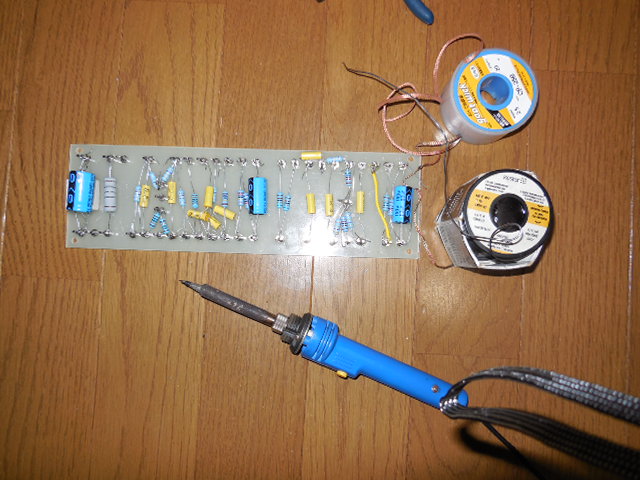

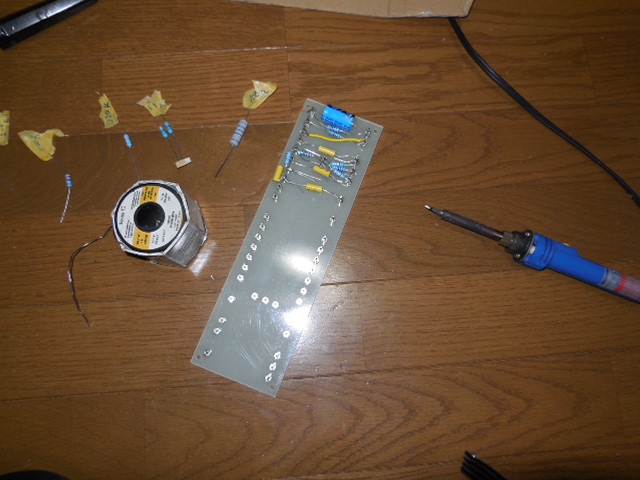

基盤をはんだ中。
I'm working on the board. |
|
基盤出来上がり!
Yep! I'm done with the board. |
|
さて、本格的な配線に入って行きます。
Well, I'm going to wiring. |
|

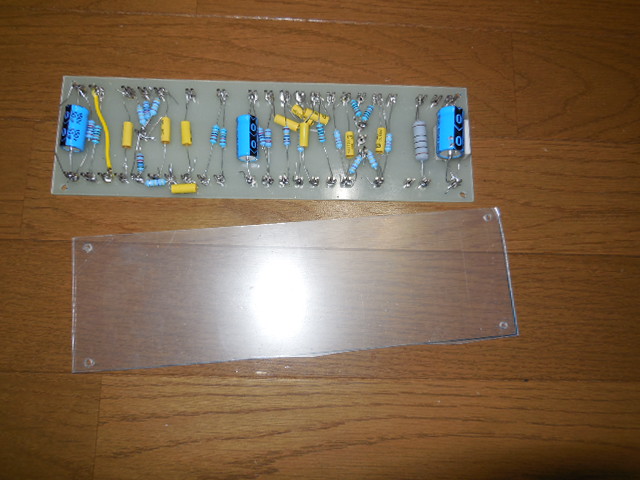

絶縁するものが無かったのでコメリでアクリル板を買ってきて自分で作りました。
Because they didn't enclose an insulator, I made one which I bought at DIY store and I made it from acryl board. |
|

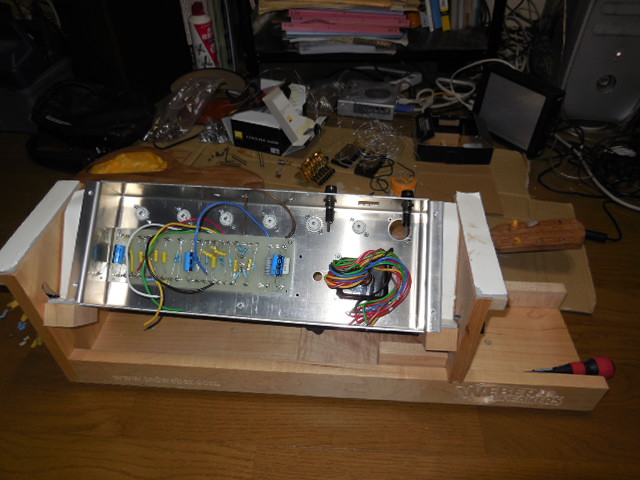

さ、本格的な配線にGO!
Getting ready to do wiring. |
