dsPIC30F2012

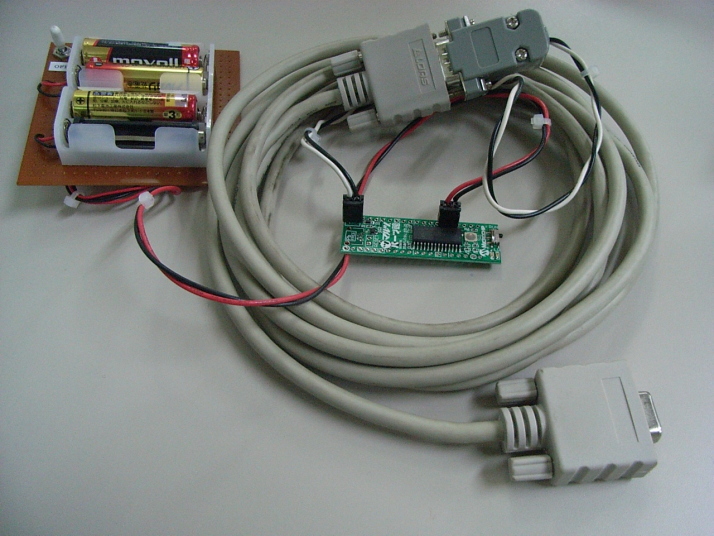

I succeeded connecting my pc to dsPIC through rs232c comport.
It is just a first step.

[Specifications] dsPIC30F2012
Max Frequency of operation: 120MHz
Flash memory: 12kb (4096instructions) /for program memory/ 10000times rewritable(100000times Average ability)
SRAM: 1024byte /for data memory
Power source: from 4.5 to 5.5VDC 100mA

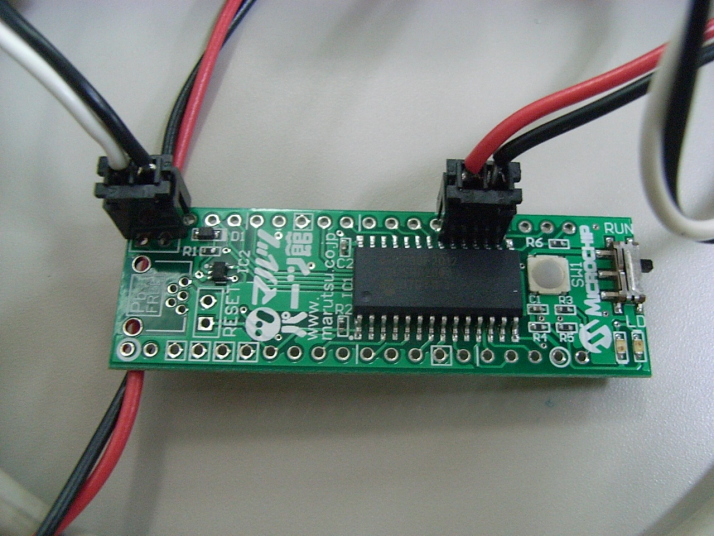

PCB converts 28 pin SOIC package(dsPIC30F2012) to 40 pin DIP

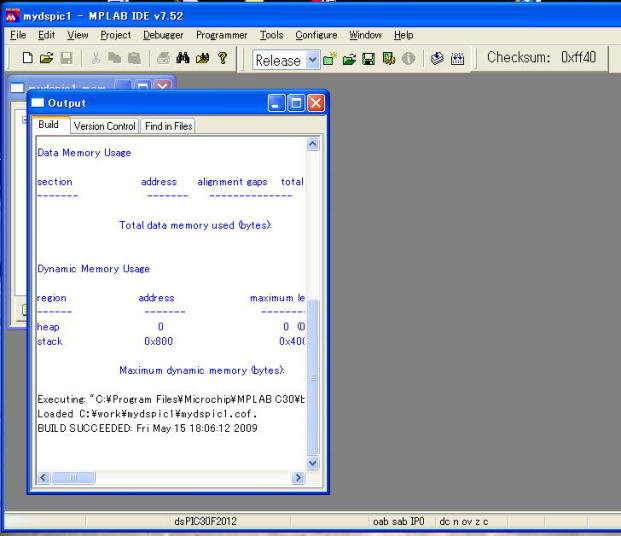

I built a test project by MPLAB studentEdition.

build/compile-link

---

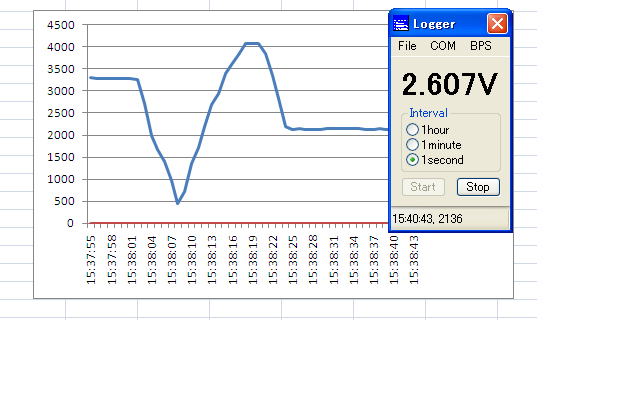

PIC gets analog voltage from his AD input every fixed time
and send them pc through rs-232c
