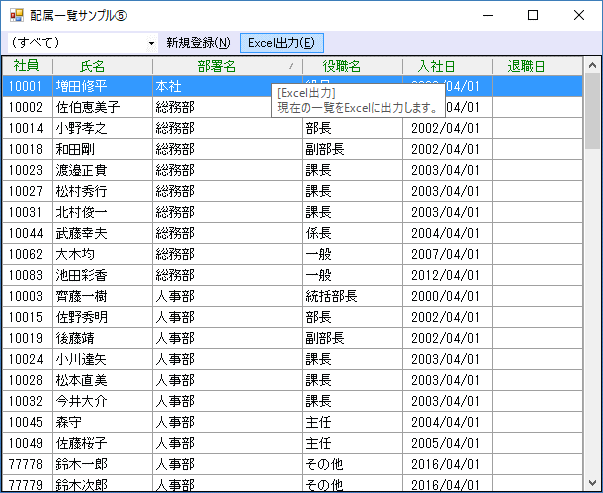

' 配属一覧サンプル(Excel出力②:実行時バインド版) dlgOutputExcel2(Form)
'
' 作成者:井上治 URL:https://www.ne.jp/asahi/excel/inoue/ [Excelでお仕事!]
'***************************************************************************************************
' 変更日付 Rev 変更履歴内容-------------------------------------------------------------------->
' 17/02/26(1.0.4.0)新規作成
' 17/03/01(1.0.4.0)作成途中⇒処理例外等を1箇所で処置するように対応中
' 17/04/02(1.0.5.0)Excelのインスタンス(新規・既存)指定機能を追加、拡張メッセージボックスの対応
' 17/04/06(1.0.5.0)実行時バインド版として再作成
'***************************************************************************************************
Imports System.IO
Friend Class dlgOutputExcel2
'===============================================================================================
Private Const g_cnsTitle As String = "配属一覧サンプル(Excel出力②)"
Private Const g_cnsTemplate As String = "ExcelSample1.xltx"
Private Const g_cnsTempPath As String = "..\..\ExcelTemplate"
Private Const g_cnsColMax As Integer = 5
'-----------------------------------------------------------------------------------------------
' 共通クラス
Private g_objAboutMDB As clsAboutMDB3 ' データベースI/Oクラス(MDB用)
'-----------------------------------------------------------------------------------------------
' フォーム間受け渡し変数
Private g_strSQL As String = String.Empty ' 抽出SQL文
Private g_blnNewInstance As Boolean = False ' 新規インスタンス指定
'***********************************************************************************************
' ■■■ フォームイベント ■■■
'***********************************************************************************************
'* 処理名 :Form_Load
'* 機能 :フォーム初期化(Load)
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(デフォルト)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年02月26日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Private Sub Form_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
'-------------------------------------------------------------------------------------------
' データベースI/Oクラスの初期化
g_objAboutMDB = New clsAboutMDB3(Me, g_cnsMdbFileame, g_cnsMdbSubFolder)
End Sub
'***********************************************************************************************
'* 処理名 :Form_Shown
'* 機能 :フォーム表示完了(Shown)
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(デフォルト)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年04月06日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Private Sub Form_Shown(ByVal sender As Object, _
ByVal e As System.EventArgs) Handles Me.Shown
'-------------------------------------------------------------------------------------------
Application.DoEvents()
'-------------------------------------------------------------------------------------------
Dim objWbk As Object = Nothing ' Excel.Workbook
' Excel出力クラスの初期化(Escキーのイベントはクラス側に実装済)
Using clsExcel = New clsAboutExcel2(Me, True)
'---------------------------------------------------------------------------------------
Dim strMSGHeader As String = String.Empty ' メッセージヘッダ
Try
'-------------------------------------------
' Excel出力(処理本体)
Call GP_MakeExcelSheet(clsExcel, objWbk, strMSGHeader)
Catch ex As Exception
'-------------------------------------------
' 処理中例外メッセージの表示
Call clsExcel.ShowFatalMessage(g_cnsTitle, strMSGHeader, ex.Message)
' 例外時後始末(但しExcel応答無しなどではここでの対応は働かない!)
Call clsExcel.SuspendExcelProc(objWbk)
End Try
'---------------------------------------------------------------------------------------
End Using
'-------------------------------------------------------------------------------------------
' 閉じる
Me.Close()
End Sub
'***********************************************************************************************
' ■■■ サブ処理 ■■■
'***********************************************************************************************
'* 処理名 :GP_MakeExcelSheet
'* 機能 :Excel出力(処理本体)
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = Excel出力クラス(Object)
'* Arg2 = Excel.Workbook(Object)
'* Arg3 = 例外時メッセージヘッダ(String) ※Ref参照
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年04月06日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:本処理中の例外は上位でトラップされる(この処理内ではトラップしない)
'***********************************************************************************************
Private Sub GP_MakeExcelSheet(ByRef clsExcel As clsAboutExcel2, _
ByRef objWbk As Object, _
ByRef strMSGHeader As String)
'-------------------------------------------------------------------------------------------
strMSGHeader = "データ抽出中"
' 配属情報の抽出
Dim dbTbl As DataTable = Nothing ' DataTable
' DataTable取得
If Not g_objAboutMDB.GetDataTableOle(dbTbl, g_strSQL, g_cnsMST_HAIZOKU) Then Exit Sub
'-------------------------------------------------------------------------------------------
Dim intCntRec As Integer = 0 ' レコードカウンタ
Dim intIx As Integer = 0 ' テーブルINDEX
Dim intIxMax As Integer = dbTbl.Rows.Count - 1 ' テーブルINDEX上限
Dim tblRec(intIxMax, g_cnsColMax) As Object ' 2次元配列テーブル
PRB_SYORICHU.Maximum = intIxMax + 1
' 全レコードを巡回
Do While intIx <= intIxMax
intCntRec += 1
' プログレスバーの処置
Call GP_SetProgressBarValue(PRB_SYORICHU, intCntRec)
' 2次元配列テーブルに配置
For intIx2 As Integer = 0 To g_cnsColMax
tblRec(intIx, intIx2) = dbTbl.Rows(intIx)(intIx2)
Next intIx2
' 次へ
intIx += 1
Loop
' データテーブルをクリア
dbTbl.Clear()
dbTbl.Reset()
'-------------------------------------------------------------------------------------------
strMSGHeader = "Excel起動中"
Dim strFilename As String ' ファイル名
' フルパステンプレート名(実行EXEの2階層上のExcelTemplateフォルダになっています)
Dim objUri1 As New Uri(My.Application.Info.DirectoryPath)
Dim objUri2 As New Uri(objUri1, g_cnsTempPath)
strFilename = Path.Combine(objUri2.LocalPath, g_cnsTemplate)
' テンプレートOPEN
If Not clsExcel.GetWorkbook(strFilename, _
objWbk, _
strMSGHeader, _
g_blnNewInstance) Then Exit Sub
'-------------------------------------------------------------------------------------------
strMSGHeader = "Excel出力中"
' ワークシートに貼り付け(矩形貼り付け)
With objWbk.Worksheets(1)
Dim intRow As Integer = intIxMax + 2 ' 行INDEX
Dim intCol As Integer = g_cnsColMax + 1 ' カラムINDEX
.Range(.Cells(2, 1), .Cells(intRow, intCol)).Value = tblRec
End With
'-------------------------------------------------------------------------------------------
strMSGHeader = "終了処理"
' 終了(Excelを表示)
Call clsExcel.SuspendExcelProc(objWbk, True)
End Sub
'***********************************************************************************************
' ■■■ 受け渡しプロパティ ■■■
'***********************************************************************************************
' 抽出SQL文(String)
'-----------------------------------------------------------------------------------------------
Friend WriteOnly Property prpSQL() As String
Set(ByVal value As String)
g_strSQL = value
End Set
End Property
'===============================================================================================
' 新規インスタンス指定(Boolean)
'-----------------------------------------------------------------------------------------------
Friend WriteOnly Property prpNewInstance() As Boolean
Set(ByVal value As Boolean)
g_blnNewInstance = value
End Set
End Property
'----------------------------------------<< End of Source >>------------------------------------
End Class
まず「
'***************************************************************************************************
' サンプル用Excel関連定数 modAboutExcel2(Module)
'
' 作成者:井上治 URL:https://www.ne.jp/asahi/excel/inoue/ [Excelでお仕事!]
'***************************************************************************************************

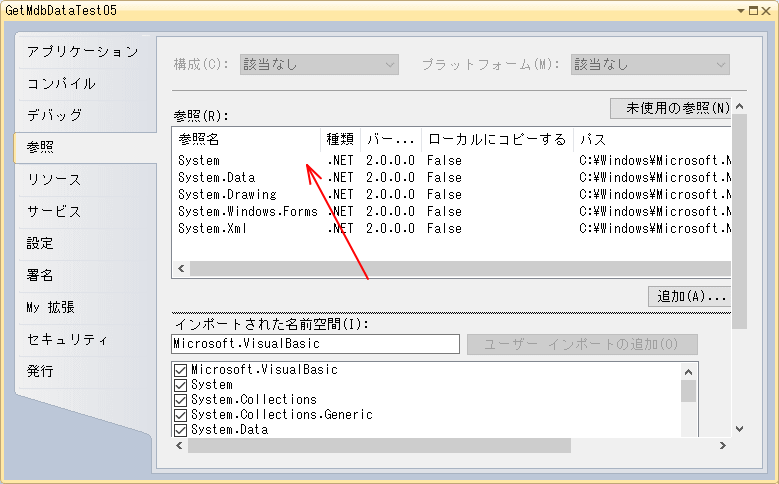

' [参照追加]・Microsoft Excel 1x.0 Object Library
' ※この下に「Excel関連クラス(clsAboutExcel1)」があります
'***************************************************************************************************
' 変更日付 Rev 変更履歴内容-------------------------------------------------------------------->
' 17/02/26(1.0.0.0)新規作成
' 17/04/02(1.0.0.0)Excelの既存インスタンス指定機能の追加対応
' 17/04/06(1.0.0.0)実行時バインド版として再作成
' 17/04/22(1.0.2.0)不要インポートの削除(System.Net、System.Runtime.InteropServices.ComTypes)
'***************************************************************************************************
Imports System.IO
Imports System.Runtime.InteropServices
Imports Microsoft.Win32.SafeHandles
Module modAboutExcel2
'===============================================================================================
' Excel処理関連定数
Friend Const g_cnsExcelApplication As String = "Excel.Application"
Friend Const xlCalculationAutomatic As Int16 = -4105
Friend Const xlCalculationManual As Int16 = -4135
Friend Const xlSheetVisible As Int16 = -1
Friend Const xlSheetHidden As Int16 = 0
Friend Const xlSheetVeryHidden As Int16 = 2
Friend Const xlMaximized As Int16 = -4137
Friend Const xlMinimized As Int16 = -4140
Friend Const xlNormal As Int16 = -4143
'-----------------------------------------------------------------------------------------------
' 保存ファイル形式定数
Friend Const xlExcel8 As Int16 = 56 ' 旧xls形式
Friend Const xlTemplate8 As Int16 = 17 ' 旧xlt形式
Friend Const xlOpenXMLWorkbook As Int16 = 51 ' xlsx形式
Friend Const xlOpenXMLWorkbookMacroEnabled As Int16 = 52 ' xlsm形式
Friend Const xlOpenXMLTemplate As Int16 = 54 ' xltx形式
Friend Const xlOpenXMLTemplateMacroEnabled As Int16 = 53 ' xltm型式
Friend Const xlAddIn8 As Int16 = 18 ' xla型式
Friend Const xlOpenXMLAddIn As Int16 = 55 ' xlam型式
'-----------------------------------------------------------------------------------------------
' セル収容可能文字数(矩形転記時上限)
Friend Const g_cnsCellStringLengthMax As Integer = 911
'-----------------------------------------------------------------------------------------------
' 拡張メッセージボックス用ガイド(Excel処理専用:参照系用)

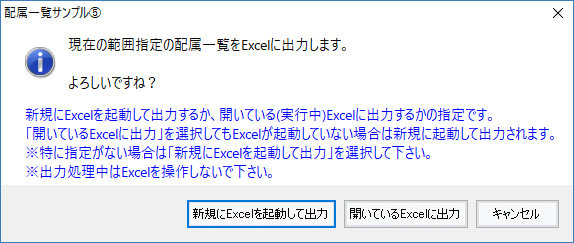

Friend ReadOnly g_tblExcelButtonText() As String = {"新規にExcelを起動して出力", _
"開いているExcelに出力", _
"キャンセル"}
Friend ReadOnly g_cnsExcelMessageGuide As String = _
"新規にExcelを起動して出力するか、開いている(実行中)Excelに出力するかの指定です。" & ControlChars.CrLf & _
"「開いているExcelに出力」を選択してもExcelが起動していない場合は新規に起動して出力されます。" & ControlChars.CrLf & _
"※特に指定がない場合は「新規にExcelを起動して出力」を選択して下さい。" & ControlChars.CrLf & _
"※出力処理中はExcelを操作しないで下さい。"
'-----------------------------------------------------------------------------------------------
' メッセージボックスコントロール(OwnerParent版)
Friend MessageBox2 As New clsMessageBox2Ex
'---------------------------------------<< End of Source >>-------------------------------------
End Module
'***************************************************************************************************
' サンプル用Excel関連クラス(実行時バインド版) clsAboutExcel2(Class)
'
' 作成者:井上治 URL:https://www.ne.jp/asahi/excel/inoue/ [Excelでお仕事!]
'***************************************************************************************************
' 変更日付 Rev 変更履歴内容-------------------------------------------------------------------->
' 17/02/26(1.0.0.0)新規作成
' 17/04/02(1.0.0.0)Excelの既存インスタンス指定機能の追加対応
' 17/04/06(1.0.0.0)実行時バインド版として再作成
' 17/04/11(1.0.0.0)ブックOPEN時のイベント制御の不備を修正
'***************************************************************************************************
Friend Class clsAboutExcel2
Implements IDisposable
'===============================================================================================
' テンプレート形式拡張子
Private Const g_cnsXLT As String = ".XLT" ' 97-2003形式テンプレート
Private Const g_cnsXLTM As String = ".XLTM" ' 2007形式テンプレート(マクロ有効)
Private Const g_cnsXLTX As String = ".XLTX" ' 2007形式テンプレート(マクロ無効)
'-----------------------------------------------------------------------------------------------
' Field to handle multiple calls to Dispose gracefully.
Private g_blnDisposed As Boolean = False ' 破棄判定
' SafeHandleインスタンス
Private handle As SafeHandle = New SafeFileHandle(IntPtr.Zero, True) ' SafeHandleインスタンス
'-----------------------------------------------------------------------------------------------
' Excel関連オブジェクト
Private g_objExcel As Object = Nothing ' Excel.Application
Private g_objWorkbooks As Object = Nothing ' Excel.Workbooks
'-----------------------------------------------------------------------------------------------
' MessageBoxのOwnerWindow指定のための現在フォーム
Private g_objOwnerForm As Object = Nothing ' Ownerフォーム
' 各スイッチ
Private g_swNewInstance As Boolean = False ' 新規インスタンス
Private g_swPrintCancel As Boolean = False ' 処理中断スイッチ
Private g_swExcelDuringProc As Boolean = False ' 出力処理中スイッチ
Private g_blnUseKeyDown As Boolean = False ' KeyDownイベント使用
' ブックOPEN時のイベント状態(イベント停止する場合はFP_GetWorkbookを呼ぶ前にFalseにする)
Private g_swExcelEnableEvents As Boolean = True ' [初期値]True
'***********************************************************************************************
' ■■■ クラス初期化メソッド ■■■
'***********************************************************************************************
'* 処理名 :New
'* 機能 :初期化
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = Ownerフォーム(Object)
'* Arg2 = KeyDownイベント使用(Boolean) ※Option
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年02月26日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:KeyDownイベント使用の時はフォームデザイナでKeyPreviewをTrueにして下さい
'***********************************************************************************************
Friend Sub New(ByRef objOwner As Object, _
Optional ByVal blnUseKeyDown As Boolean = False)
'-------------------------------------------------------------------------------------------
g_objOwnerForm = objOwner ' Ownerフォーム
g_blnUseKeyDown = blnUseKeyDown ' KeyDownイベント使用
g_swNewInstance = False
g_swExcelEnableEvents = True
g_swPrintCancel = False
'g_strFatalErrMSG = String.Empty
' KeyDownイベント使用
If g_blnUseKeyDown Then
' KeyDownイベントハンドラ追加
AddHandler CType(objOwner, Form).KeyDown, AddressOf Form_KeyDown
End If
End Sub
'***********************************************************************************************
' ■■■ 破棄 ■■■
'***********************************************************************************************
'* 処理名 :Dispose、Finalize
'* 機能 :クラス破棄
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年02月26日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Friend Overloads Sub Dispose() Implements IDisposable.Dispose
'-------------------------------------------------------------------------------------------
Dispose(True)
GC.SuppressFinalize(Me)
End Sub
Protected Friend Overloads Sub Dispose(ByVal blnDisposing As Boolean)
'-------------------------------------------------------------------------------------------
' 既に破棄されていないか
If Not g_blnDisposed Then
' Dispose呼び出しか
If blnDisposing Then
handle.Dispose()
g_blnDisposed = True
End If
If g_blnUseKeyDown Then
' KeyDownイベントハンドラ開放
RemoveHandler CType(g_objOwnerForm, Form).KeyDown, AddressOf Form_KeyDown
End If
' 確保しているExcel関連全てオブジェクトの解放
Call GP_ReleaseAllExObject()
' 参照破棄
g_objOwnerForm = Nothing
End If
End Sub
'***********************************************************************************************
' ■■■ フォームイベント ■■■
'***********************************************************************************************
'* 処理名 :Form_KeyDown
'* 機能 :キー押下イベント(Form_KeyDown)
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(デフォルト)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年02月26日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Friend Sub Form_KeyDown(ByVal sender As Object, _
ByVal e As System.Windows.Forms.KeyEventArgs)
'-------------------------------------------------------------------------------------------
' Escキーは中断指示とみなす
If ((e.KeyCode = Keys.Escape) AndAlso (Not e.Shift)) Then
' 処理中断スイッチをセット
g_swPrintCancel = True
End If
End Sub
'***********************************************************************************************
' ■■■ 公開メソッド ■■■
'***********************************************************************************************
'* 処理名 :GetWorkbook
'* 機能 :Excelのインスタンスを生成してワークブックを開く
'-----------------------------------------------------------------------------------------------
'* 返り値 :処理正否(Boolean)
'* 引数 :Arg1 = ワークブックファイル名(String) ※フルパスで指定
'* Arg2 = Excel.Workbook(Object) ※Ref参照
'* Arg3 = 例外時メッセージヘッダ(String) ※Ref参照
'* Arg4 = 新規インスタンス指定(Boolean)
'* Arg5 = 引数UpdateLinks(Int16) ※Option:Workbook時の引数
'* Arg6 = 引数ReadOnly(Boolean) ※Option:Workbook時の引数
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年04月06日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:ファイル名ブランク時は新規ブックを返す
'***********************************************************************************************
Friend Function GetWorkbook(ByVal strFileName As String, _
ByRef objWBK As Object, _
ByRef strMSGHeader As String, _
ByVal blnNewInstance As Boolean, _
Optional ByVal intUpdateLinks As Int16 = 0, _
Optional ByVal blnReadOnly As Boolean = True) As Boolean
'-------------------------------------------------------------------------------------------
Dim blnTemplate As Boolean = False ' テンプレート判定
Dim strBooknameU As String = String.Empty ' ブック名(大文字変換)
Dim strMSG As String = String.Empty ' メッセージ
g_swNewInstance = False
GetWorkbook = False
objWBK = Nothing
'-------------------------------------------------------------------------------------------
' ファイル名の指定があるか
If strFileName.Length <> 0 Then
' ファイル存在確認
If Not FP_CheckExistsFile(strFileName, _
blnTemplate, _
strBooknameU, _
strMSGHeader) Then Return False
End If
'-------------------------------------------------------------------------------------------
' Excel.Applicationのインスタンス取得(又は生成)
strMSGHeader = "Excel.Applicationのインストール確認"
Dim typType As Type = Nothing ' Type
Try
typType = Type.GetTypeFromProgID(g_cnsExcelApplication)
' 取得不可
If typType Is Nothing Then
strMSG = strMSGHeader & ControlChars.CrLf
strMSG &= "Excelがインストールされていません。"
' エラーを表示
MessageBox2.DialogShow(g_objOwnerForm, _
strMSG, _
g_objOwnerForm.Text, _
MessageBoxButtons.OK, _
MessageBoxIcon.Error)
Return False
End If
Catch ex As Exception
strMSG = strMSGHeader & ControlChars.CrLf
strMSG &= ex.Message
' エラーを表示
MessageBox2.DialogShow(g_objOwnerForm, _
strMSG, _
g_objOwnerForm.Text, _
MessageBoxButtons.OK, _
MessageBoxIcon.Error)
Return False
End Try
'-------------------------------------------------------------------------------------------
' Excel.Applicationのインスタンス生成
strMSGHeader = "Excel.Applicationのインスタンス生成"
' 新規インスタンス指定か
If blnNewInstance Then
' Excelの新規インスタンスを生成
g_objExcel = Activator.CreateInstance(typType)
Else
' Excelが実行中の場合は実行中のインスタンスを取得
' ここで'System.Exception'の初回例外が発生しますがTry捕捉内なので無視します
Try
' Excelが実行中の場合は実行中のインスタンスを取得
' ここで'System.Exception'の初回例外が発生しますがTry捕捉内なので無視します
g_objExcel = GetObject(, g_cnsExcelApplication)
Catch ex As Exception
' Excelが実行中でない(又は取得失敗)場合は新規にインスタンスを生成
g_objExcel = Activator.CreateInstance(typType)
End Try
End If
'-------------------------------------------------------------------------------------------
' Excel.Workbooksの取得
strMSGHeader = "Excel.Workbooksの取得"
g_objWorkbooks = g_objExcel.Workbooks
'-------------------------------------------------------------------------------------------
' ワークブックの指定がない場合は新規ブックを返す
If strFileName.Length = 0 Then
' 新規ワークブックを開く
Return FP_OpenNewWorkbook(objWBK, strMSGHeader)
Else
' 既存のワークブックを開く
Return FP_OpenExiWorkbook(strFileName, _
blnTemplate, _
strBooknameU, _
intUpdateLinks, _
blnReadOnly, _
objWBK, _
strMSGHeader)
End If
End Function
'***********************************************************************************************
'* 処理名 :SuspendExcelProc
'* 機能 :Excel出力の終了
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = Excel.Workbook(Object) ※Option
'* Arg2 = 終了回避スイッチ(Boolean) ※Option:True=Excel終了しない
'* Arg3 = 保存済回避スイッチ(Boolean) ※Option:True=保存済にしない
'* Arg4 = COMオブジェクト解放スイッチ(Boolean) ※Option:True=解放する
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年03月01日
'* 作成者 :井上 治
'* 更新日 :2017年04月06日
'* 更新者 :井上 治
'* 機能説明:WorkbookのCloseやExcelの終了を含む(Excelを表示させて終了も可)
'* 注意事項:この処理中での例外は無視される
'***********************************************************************************************
Friend Sub SuspendExcelProc(Optional ByRef objWbk As Object = Nothing, _
Optional ByVal blnOmitQuit As Boolean = False, _
Optional ByVal blnOmitSaved As Boolean = False, _
Optional ByVal blnReleaseComObject As Boolean = True)
'-------------------------------------------------------------------------------------------
' 閉じない指定でなければブックを閉じる
If objWbk IsNot Nothing AndAlso Not blnOmitQuit AndAlso blnReleaseComObject Then
Try
Call StartScreenUpdate()
objWbk.Saved = True ' 展開ブックは保存済み属性とする
objWbk.Close(False)
Finally
' COMオブジェクト解放
Call GP_ReleaseComObject(objWbk)
End Try
End If
'-------------------------------------------------------------------------------------------
' Workbooks解放
If g_objWorkbooks IsNot Nothing Then
Try
' 別のワークブックが存在するか
blnOmitQuit = g_objWorkbooks.Count <> 0
' COMオブジェクト解放
Call GP_ReleaseComObject(g_objWorkbooks)
Finally
' 無視
End Try
End If
'-------------------------------------------------------------------------------------------
Try
' Application解放
If Not blnOmitQuit AndAlso blnReleaseComObject Then
' Excelの終了
g_objExcel.Quit()
Application.DoEvents()
Else
' Excelの現状復帰(表示再開等)
g_objExcel.Visible = True ' Excelウィンドウを表示
If g_objExcel.WindowState = xlMinimized Then
' 最小化状態だったら通常に復帰
g_objExcel.WindowState = xlNormal
End If
Call StartScreenUpdate()
If ((Not objWbk Is Nothing) AndAlso (Not blnOmitSaved)) Then
objWbk.Saved = True ' 展開ブックは保存済み属性とする
End If
End If
Finally
' COMオブジェクト解放
If Not blnOmitQuit AndAlso blnReleaseComObject Then
Call GP_ReleaseComObject(g_objExcel)
End If
End Try
End Sub
'***********************************************************************************************
'* 処理名 :StopScreenUpdate
'* 機能 :Excelの画面描画停止
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年03月01日
'* 作成者 :井上 治
'* 更新日 :2017年03月01日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Friend Sub StopScreenUpdate()
'-------------------------------------------------------------------------------------------
With g_objExcel
.ScreenUpdating = False
.Calculation = xlCalculationManual
.EnableEvents = False
End With
End Sub
'***********************************************************************************************
'* 処理名 :StartScreenUpdate
'* 機能 :Excelの画面描画再開
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年03月01日
'* 作成者 :井上 治
'* 更新日 :2017年03月01日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Friend Sub StartScreenUpdate()
'-------------------------------------------------------------------------------------------
With g_objExcel
.Calculation = xlCalculationAutomatic
.EnableEvents = True
.ScreenUpdating = True
End With
End Sub
'***********************************************************************************************
'* 処理名 :ReleaseComObject
'* 機能 :COMオブジェクトの解放
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = COMオブジェクト(Object)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年02月26日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Friend Sub ReleaseComObject(ByRef objCOM As Object)
'-------------------------------------------------------------------------------------------
' COMオブジェクトの解放(共通処理)
Call GP_ReleaseComObject(objCOM)
End Sub
'***********************************************************************************************
'* 処理名 :ShowFatalMessage
'* 機能 :致命例外メッセージ編集
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = プログラムタイトル(String)
'* Arg2 = メッセージヘッダ(String)
'* Arg3 = 例外メッセージ(String)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年03月02日
'* 作成者 :井上 治
'* 更新日 :2017年04月02日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Friend Sub ShowFatalMessage(ByVal strTitle As String, _
ByVal strMSGHeader As String, _
ByVal strExMessage As String)
'-------------------------------------------------------------------------------------------
Dim strErrMSG As String = strMSGHeader ' メッセージ
' ヘッダ無し
If strMSGHeader.Length = 0 Then
strErrMSG = strExMessage
Else
strErrMSG &= "でエラーが発生しました。" & ControlChars.CrLf & strExMessage
strErrMSG &= ControlChars.CrLf & ControlChars.CrLf
strErrMSG &= "Excelプロセスが残存する場合があります。" & ControlChars.CrLf
strErrMSG &= "不具合が解消しない場合はWindowsを再起動して下さい。"
End If
MessageBox2.DialogShow(g_objOwnerForm, _
strErrMSG, _
strTitle, _
MessageBoxButtons.OK, _
MessageBoxIcon.Error)
End Sub
'***********************************************************************************************
' ■■■ 共通サブ処理(Private) ■■■
'***********************************************************************************************
'* 処理名 :GP_ReleaseComObject
'* 機能 :COMオブジェクトの解放
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = COMオブジェクト(Object)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年02月26日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Private Sub GP_ReleaseComObject(ByRef objCOM As Object)
'-------------------------------------------------------------------------------------------
' 明示的にCOMオブジェクトへの参照を解放する
Try
' ランタイム呼び出し可能ラッパーの参照カウントをデクリメント
If ((Not objCOM Is Nothing) AndAlso (Marshal.IsComObject(objCOM))) Then
Marshal.FinalReleaseComObject(objCOM)
End If
Finally
' 参照を解除する
objCOM = Nothing
End Try
End Sub
'***********************************************************************************************
'* 処理名 :GP_ReleaseAllExObject
'* 機能 :確保しているExcel関連全てオブジェクトの解放
'-----------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年04月06日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Private Sub GP_ReleaseAllExObject()
'-------------------------------------------------------------------------------------------
' 新規インスタンスか
If g_swNewInstance Then
Try
' Excel.Workbooksが確保されている場合は全てのWorkbookを強制的に閉じる
For Each objWbk As Object In g_objWorkbooks
' 強制的に閉じる
objWbk.Saved = True
objWbk.Close(False)
' Excel.Workbookの解放
Call GP_ReleaseComObject(objWbk)
Next objWbk
Catch ex As Exception
' 無視
End Try
End If
' Excel.Workbooksの解放
Call GP_ReleaseComObject(g_objWorkbooks)
' Excel.Applicationの解放
Call GP_ReleaseComObject(g_objExcel)
End Sub
'***********************************************************************************************
'* 処理名 :FP_CheckExistsFile
'* 機能 :ファイル存在確認
'-----------------------------------------------------------------------------------------------
'* 返り値 :チェック成否(Boolean)
'* 引数 :Arg1 = 存在チェックするファイル名(String) ※フルパスで指定
'* Arg2 = テンプレート判定(Boolean) ※Ref参照
'* Arg3 = ブック名(大文字変換)(String) ※Ref参照
'* Arg4 = 例外時メッセージヘッダ(String) ※Ref参照
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年04月02日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:URL上のファイルには対応しません、例外処理はありません
'***********************************************************************************************
Private Function FP_CheckExistsFile(ByVal strFilename As String, _
ByRef blnTemplate As Boolean, _
ByRef strBooknameU As String, _
ByRef strMSGHeader As String) As Boolean
'-------------------------------------------------------------------------------------------
Dim objFileInfo As FileInfo = New FileInfo(strFilename) ' FileInfo
Dim strExt As String = objFileInfo.Extension.ToUpper ' 拡張子
Dim strMSG As String = String.Empty ' メッセージ
strMSGHeader = "ファイル存在チェック"
strBooknameU = objFileInfo.Name.ToUpper
' 拡張子判定
If ((strExt = g_cnsXLT) OrElse (strExt = g_cnsXLTM) OrElse (strExt = g_cnsXLTX)) Then
blnTemplate = True
End If
' ファイルが見つからない
If Not objFileInfo.Exists Then
' 拡張子判定
If blnTemplate Then
strMSG = "指定のテンプレートが存在しません。"
Else
strMSG = "指定のワークブックが存在しません。"
End If
strMSG &= ControlChars.CrLf & strFilename
MessageBox2.DialogShow(g_objOwnerForm, _
strMSG, _
g_objOwnerForm.Text, _
MessageBoxButtons.OK, _
MessageBoxIcon.Error)
Return False
Else
Return True
End If
End Function
'***********************************************************************************************
'* 処理名 :FP_OpenNewWorkbook
'* 機能 :新規ワークブックを開く
'-----------------------------------------------------------------------------------------------
'* 返り値 :処理成否(Boolean)
'* 引数 :Arg1 = Excel.Workbook(Object) ※Ref参照
'* Arg2 = 例外時メッセージヘッダ(String) ※Ref参照
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年04月06日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Private Function FP_OpenNewWorkbook(ByRef objWBK As Object, _
ByRef strMSGHeader As String) As Boolean
'-------------------------------------------------------------------------------------------
strMSGHeader = "新規ワークブックを開く"
' 新規インスタンスか?
If (g_swNewInstance AndAlso (g_objWorkbooks.Count <> 0)) Then
objWBK = g_objWorkbooks(1)
Else
objWBK = g_objWorkbooks.Add
End If
Return True
End Function
'***********************************************************************************************
'* 処理名 :FP_OpenExiWorkbook
'* 機能 :既存ワークブックを開く
'-----------------------------------------------------------------------------------------------
'* 返り値 :処理成否(Boolean)
'* 引数 :Arg1 = ワークブックファイル名(String) ※フルパスで指定
'* Arg2 = テンプレート判定(Boolean)
'* Arg3 = ブック名(大文字変換)(String)
'* Arg4 = 引数UpdateLinks(Int16)
'* Arg5 = 引数ReadOnly(Boolean)
'* Arg6 = Excel.Workbook(Object) ※Ref参照
'* Arg7 = 例外時メッセージヘッダ(String) ※Ref参照
'-----------------------------------------------------------------------------------------------
'* 作成日 :2017年02月26日
'* 作成者 :井上 治
'* 更新日 :2017年04月11日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***********************************************************************************************
Private Function FP_OpenExiWorkbook(ByVal strFileName As String, _
ByVal blnTemplate As Boolean, _
ByVal strBooknameU As String, _
ByVal intUpdateLinks As Int16, _
ByVal blnReadOnly As Boolean, _
ByRef objWBK As Object, _
ByRef strMSGHeader As String) As Boolean
'-------------------------------------------------------------------------------------------
strMSGHeader = "既存ワークブックを開く"
' テンプレートか
If blnTemplate Then
' 初期イベント状態(モジュール変数にて設定)
g_objExcel.EnableEvents = g_swExcelEnableEvents
' テンプレート(*.xlt,*.xltm,*.xltx)時は新規ブックで開く
objWBK = g_objWorkbooks.Add(strFileName)
Else
' ワークブック(*.xls,*.xlsm,*.xlsx)等の場合は既に開いているか判断
If Not g_swNewInstance Then
' 開いているブックを巡回
For Each objWBK2 As Object In g_objWorkbooks
' フルネームの一致はそのファイルの処理とする(正常扱い)
If objWBK2.FullName.ToUpper = strFileName.ToUpper Then
objWBK = objWBK2
Return True
End If
Next objWBK2
' 開いているブックを巡回
For Each objWBK2 As Object In g_objWorkbooks
' ブック名のみ一致はNG
If objWBK2.Name.ToUpper = strBooknameU Then
' ブック名の衝突
Dim strMSG As String = _
"指定ワークブックと同じブック名のファイルが開かれています。" ' メッセージ
MessageBox2.DialogShow(g_objOwnerForm, _
strMSG, _
g_objOwnerForm.Text, _
MessageBoxButtons.OK, _
MessageBoxIcon.Error)
' Excel.Workbookの解放
Call GP_ReleaseComObject(objWBK)
Return False
End If
Next objWBK2
End If
' 初期イベント状態(モジュール変数にて設定)
g_objExcel.EnableEvents = g_swExcelEnableEvents
' ワークブック(*.xls等)時は開く
objWBK = g_objWorkbooks.Open(strFileName, intUpdateLinks, blnReadOnly)
End If
Return True
End Function
'***********************************************************************************************
' ■■■ プロパティ ■■■
'***********************************************************************************************
' 処理中断スイッチ(Boolean)
'-----------------------------------------------------------------------------------------------
Friend Property prpPrintCancel() As Boolean
Get
Return g_swPrintCancel
End Get
Set(ByVal value As Boolean)
g_swPrintCancel = value
End Set
End Property
'===============================================================================================
' 出力処理中スイッチ(Boolean)
'-----------------------------------------------------------------------------------------------
Friend Property prpExcelDuringProc() As Boolean
Get
Return g_swExcelDuringProc
End Get
Set(ByVal value As Boolean)
g_swExcelDuringProc = value
End Set
End Property
'===============================================================================================
' ブックOPEN時のイベント状態(イベント停止する場合はFP_GetWorkbookを呼ぶ前にFalseにする)
'-----------------------------------------------------------------------------------------------
Friend Property prpExcelEnableEvents() As Boolean
Get
Return g_swExcelEnableEvents
End Get
Set(ByVal value As Boolean)
g_swExcelEnableEvents = value
End Set
End Property
'===============================================================================================
' Excel.Application(Obnject) ※既にExcelインスタンスが確保されている前提
'-----------------------------------------------------------------------------------------------
Friend ReadOnly Property ExApp As Object
Get
Return g_objExcel
End Get
End Property
'===============================================================================================
' Excel.Workbooks(Obnject) ※既にExcelインスタンスが確保されている前提
'-----------------------------------------------------------------------------------------------
Friend ReadOnly Property ExWorkbooks As Object
Get
Return g_objWorkbooks
End Get
End Property
'---------------------------------------<< End of Source >>-------------------------------------
End Class
このクラスでも「
