' CSV形式テキストファイル書き出すサンプル Module1(Module)
'
' 作成者:井上治 URL:https://www.ne.jp/asahi/excel/inoue/ [Excelでお仕事!]
'***************************************************************************************************
' [参照設定]
' ・Microsoft Scription Runtime
' ・Windows Script Host Object Model
'***************************************************************************************************
'変更日付 Rev 変更履歴内容------------------------------------------------------------------------>
'19/12/22(1.00)新規作成
'***************************************************************************************************
Option Explicit
'===================================================================================================
Public Const g_cnsTitle As String = "CSV形式テキストファイル書き出すサンプル"
'---------------------------------------------------------------------------------------------------
' CSV形式指定項目
Private Const g_cnsCntColumns As Long = 0 ' 列数(0=先頭行で自動判定)
Private Const g_cnsFirstRow As Long = 1 ' 読出し先頭行番号(0不可,見出し含む)
Private Const g_cnsFirstCol As Long = 1 ' 読出し先頭カラム番号(0不可)
Private Const g_cnsCntMidashiRow As Long = 1 ' 見出し行数
Private Const g_cnsColCntMaxRows As Long = 1 ' 最終行判定列番号(0不可)
Private Const g_cnsUseMidashi As Boolean = True ' 見出し出力有無(行数0時はFalse)
Private Const g_cnsUseUnicode As Boolean = False ' Unicode指定
'***************************************************************************************************
' ■■■ ユーザー起動処理 ■■■
'***************************************************************************************************
'* 処理名 :WRITE_CSV_TEST
'* 機能 :CSV形式テキストファイル書き出すサンプル
'---------------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Public Sub WRITE_CSV_TEST()
'-----------------------------------------------------------------------------------------------
Dim objShell As WshShell ' WshShell
Dim objClass As clsWriteCsvFile5 ' CSV出力クラス
Dim strCurrPathSV As String ' カレントフォルダ退避
Dim strFilename As String ' ファイル名
Dim vntFilename As Variant ' ファイル名(受け取り)
' アクティブシートチェック

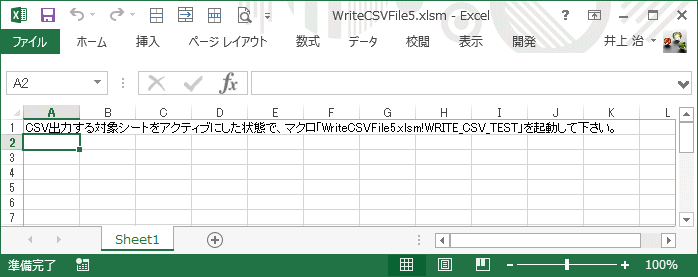

If ActiveWorkbook.Name = ThisWorkbook.Name Then
MsgBox "CSV出力させるワークシートをアクティブにした状態で起動して下さい。", _
vbExclamation, g_cnsTitle
Exit Sub
End If
'-----------------------------------------------------------------------------------------------
Set objShell = New WshShell
strCurrPathSV = objShell.CurrentDirectory
objShell.CurrentDirectory = ThisWorkbook.Path

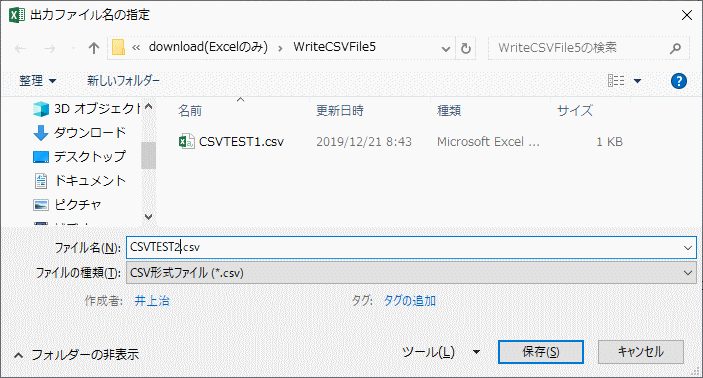

' ファイル名受け取り
vntFilename = Application.GetSaveAsFilename("SAMPLE.csv", _
"CSV形式ファイル (*.csv),*.csv", , _
"出力ファイル名の指定")
objShell.CurrentDirectory = strCurrPathSV
' キャンセルは終了
If VarType(vntFilename) = vbBoolean Then Exit Sub
strFilename = vntFilename
'-----------------------------------------------------------------------------------------------
' CSV形式テキストファイル書き出しクラス
Set objClass = New clsWriteCsvFile5
With objClass
.prpCntColumns = g_cnsCntColumns ' 項目カラム数
.prpFirstRow = g_cnsFirstRow ' 読出し先頭行番号
.prpFirstCol = g_cnsFirstCol ' 読出し先頭カラム番号
.prpCntMidashiRow = g_cnsCntMidashiRow ' 見出し行数
.prpColCntMaxRows = g_cnsColCntMaxRows ' 最終行判定列番号
.prpUseMidashi = g_cnsUseMidashi ' 見出し出力有無
.prpUseUnicode = g_cnsUseUnicode ' Unicode指定
.prpFilename = strFilename ' 出力ファイル名
' 実際のCSV出力処理
If Not .WriteCsvFile5(ActiveSheet) Then
' エラー表示
MsgBox .prpErrMSG, vbCritical, g_cnsTitle
Else
' 終了表示

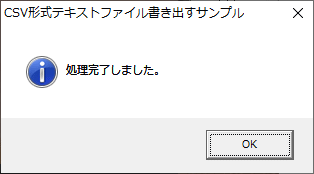

MsgBox "処理完了しました。", vbInformation, g_cnsTitle
End If
End With
End Sub
'----------------------------------------<< End of Source >>----------------------------------------
プロパティ名 | 今回の定数名 | 内 容 |
---|---|---|
prpCntColumns | g_cnsCntColumns | ワークシート側の項目カラム数です。0の時は先頭行の項目数で自動判定されます。 先頭行が「見出し」であれば見出し項目数で決定されます。 見出しがない場合は先頭行の項目数は右寄りの項目がブランクかどうかでブレるので0ではなく項目数を指定して下さい。 |
prpFirstRow | g_cnsFirstRow | ワークシート側の見出しを含む読み出し先頭行です。通常は1です。 「見出し」をCSV側に出力するかどうか及び見出し行数は別項目で指定できるので単に読み出し先頭行として指定して下さい。 |
prpFirstCol | g_cnsFirstCol | ワークシート側の読み出し先頭カラムです。通常は1です。 実際にCSV側に出力するセル範囲の左に余分な列がある場合は値を変更することでこれを避けることができます。 |
prpCntMidashiRow | g_cnsCntMidashiRow | ワークシート側の見出し行数です。 |
prpColCntMaxRows | g_cnsColCntMaxRows | ワークシート側でデータ最終行を判定するカラムを指定します。必ず値がある列番号を指定して下さい。 |
prpUseMidashi | g_cnsUseMidashi | 見出し行をCSV側に出力するかどうかの指定です。 |
prpUseUnicode | g_cnsUseUnicode | CSV側の文字コードをUNICODEにするかの指定です。 |
'***************************************************************************************************
' CSV形式テキストファイル書き出すサンプル Module1(Module)
'
' 作成者:井上治 URL:https://www.ne.jp/asahi/excel/inoue/ [Excelでお仕事!]
'***************************************************************************************************
' [参照設定]
' ・Microsoft Scription Runtime
' ・Windows Script Host Object Model
'***************************************************************************************************
'変更日付 Rev 変更履歴内容------------------------------------------------------------------------>
'19/12/22(1.00)新規作成
'***************************************************************************************************
Option Explicit
'===================================================================================================
Public Const g_cnsTitle As String = "CSV形式テキストファイル書き出すサンプル"
'---------------------------------------------------------------------------------------------------
' CSV形式指定項目
Private Const g_cnsCntColumns As Long = 0 ' 列数(0=先頭行で自動判定)
Private Const g_cnsFirstRow As Long = 1 ' 読出し先頭行番号(0不可,見出し含む)
Private Const g_cnsFirstCol As Long = 1 ' 読出し先頭カラム番号(0不可)
Private Const g_cnsCntMidashiRow As Long = 1 ' 見出し行数
Private Const g_cnsColCntMaxRows As Long = 1 ' 最終行判定列番号(0不可)
Private Const g_cnsUseUnicode As Boolean = False ' Unicode指定
'-------------------------------------------------
' ■見出し出力方法
Private Const g_cnsUseMidashi As Long = 8 ' 見出し出力方法
' ※「見出し出力方法」指定値の説明
' -1=見出しなし(先頭行からデータとして編集)
' 0=先頭行のみセパレータのみ(下記「カラム単位の編集」は無視)
' 2=先頭行は全て「"」囲い(下記「カラム単位の編集」は無視)
' 4=先頭行は全て「'」囲い(下記「カラム単位の編集」は無視)
' 8=自動判定(セル内改行、「"」、「,」有りは「"」囲い)
' 9=自動判定(セル内改行、「'」、「,」有りは「'」囲い)
'-------------------------------------------------
' ■カラム単位編集方法(カラム位置ごと)
' カラム位置⇒ ....*....1....*....2....*....3....*....4....*....5
Private Const g_cnsColEdit = "28111000000000000000000000000000000000000000000000"
' ※「カラム単位編集方法」指定値の説明
' 0=セパレータのみ
' 1=数値(ブランク、非数値はゼロ出力)
' 2=文字列(「"」囲い:無条件)
' 3=文字列(「"」囲い:ブランクを除く)
' 4=文字列(「'」囲い:無条件)
' 5=文字列(「'」囲い:ブランクを除く)
' 6=日付(「#」囲い:ブランクを除く)
' 7=日付(「"」囲い:ブランクを除く)
' 8=自動判定(セル内改行、「"」、「,」有りは「"」囲い)
' 9=自動判定(セル内改行、「'」、「,」有りは「'」囲い)
'***************************************************************************************************
' ■■■ ユーザー起動処理 ■■■
'***************************************************************************************************
'* 処理名 :WRITE_CSV_TEST
'* 機能 :CSV形式テキストファイル書き出すサンプル
'---------------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Public Sub WRITE_CSV_TEST()
'-----------------------------------------------------------------------------------------------
Dim objShell As WshShell ' WshShell
Dim objClass As clsWriteCsvFile4 ' CSV出力クラス
Dim strCurrPathSV As String ' カレントフォルダ退避
Dim strFilename As String ' ファイル名
Dim vntFilename As Variant ' ファイル名(受け取り)
' アクティブシートチェック
If ActiveWorkbook.Name = ThisWorkbook.Name Then
MsgBox "CSV出力させるワークシートをアクティブにした状態で起動して下さい。", _
vbExclamation, g_cnsTitle
Exit Sub
End If
'-----------------------------------------------------------------------------------------------
Set objShell = New WshShell
strCurrPathSV = objShell.CurrentDirectory
objShell.CurrentDirectory = ThisWorkbook.Path
' ファイル名受け取り
vntFilename = Application.GetSaveAsFilename("SAMPLE.csv", _
"CSV形式ファイル (*.csv),*.csv", , _
"出力ファイル名の指定")
objShell.CurrentDirectory = strCurrPathSV
' キャンセルは終了
If VarType(vntFilename) = vbBoolean Then Exit Sub
strFilename = vntFilename
'-----------------------------------------------------------------------------------------------
' CSV形式テキストファイル書き出しクラス
Set objClass = New clsWriteCsvFile4
With objClass
.prpCntColumns = g_cnsCntColumns ' 項目カラム数
.prpFirstRow = g_cnsFirstRow ' 読出し先頭行番号
.prpFirstCol = g_cnsFirstCol ' 読出し先頭カラム番号
.prpCntMidashiRow = g_cnsCntMidashiRow ' 見出し行数
.prpColCntMaxRows = g_cnsColCntMaxRows ' 最終行判定列番号
.prpUseMidashi = g_cnsUseMidashi ' 見出し出力指定
.prpUseUnicode = g_cnsUseUnicode ' Unicode指定
.prpColEdit = g_cnsColEdit
.prpFilename = strFilename ' 出力ファイル名
' 実際のCSV出力処理
If Not .WriteCsvFile4(ActiveSheet) Then
' エラー表示
MsgBox .prpErrMSG, vbCritical, g_cnsTitle
Else
' 終了表示
MsgBox "処理完了しました。", vbInformation, g_cnsTitle
End If
End With
End Sub
'----------------------------------------<< End of Source >>----------------------------------------
プロパティ名 | 今回の定数名 | 内 容 |
---|---|---|
prpCntColumns | g_cnsCntColumns | ワークシート側の項目カラム数です。0の時は先頭行の項目数で自動判定されます。 先頭行が「見出し」であれば見出し項目数で決定されます。 見出しがない場合は先頭行の項目数は右寄りの項目がブランクかどうかでブレるので0ではなく項目数を指定して下さい。 |
prpFirstRow | g_cnsFirstRow | ワークシート側の見出しを含む読み出し先頭行です。通常は1です。 「見出し」をCSV側に出力するかどうか及び見出し行数は別項目で指定できるので単に読み出し先頭行として指定して下さい。 |
prpFirstCol | g_cnsFirstCol | ワークシート側の読み出し先頭カラムです。通常は1です。 実際にCSV側に出力するセル範囲の左に余分な列がある場合は値を変更することでこれを避けることができます。 |
prpCntMidashiRow | g_cnsCntMidashiRow | ワークシート側の見出し行数です。 |
prpColCntMaxRows | g_cnsColCntMaxRows | ワークシート側でデータ最終行を判定するカラムを指定します。必ず値がある列番号を指定して下さい。 |
prpUseMidashi | g_cnsUseMidashi | 見出し行をCSV側に出力するかどうかの指定です。 出力有無だけでなく「どのように出力するか」を以下の中から指定します。 -1=見出しなし(先頭行からデータとして編集) 0=先頭行のみセパレータのみ(下記「カラム単位の編集」は無視) 2=先頭行は全て「"」囲い(下記「カラム単位の編集」は無視) 4=先頭行は全て「'」囲い(下記「カラム単位の編集」は無視) 8=自動判定(セル内改行、「"」、「,」有りは「"」囲い) 9=自動判定(セル内改行、「'」、「,」有りは「'」囲い) |
prpUseUnicode | g_cnsUseUnicode | CSV側の文字コードをUNICODEにするかの指定です。 |
prpColEdit | g_cnsColEdit | カラム単位編集方法指定 カラムごとのCSV側への編集方法の指定です。スケール状の文字列で指定します。 0=セパレータのみ 1=数値(ブランク、非数値はゼロ出力) 2=文字列(「"」囲い:無条件) 3=文字列(「"」囲い:ブランクを除く) 4=文字列(「'」囲い:無条件) 5=文字列(「'」囲い:ブランクを除く) 6=日付(「#」囲い:ブランクを除く) 7=日付(「"」囲い:ブランクを除く) 8=自動判定(セル内改行、「"」、「,」有りは「"」囲い) 9=自動判定(セル内改行、「'」、「,」有りは「'」囲い) |
'***************************************************************************************************
' CSV形式テキストファイル書き出しクラス clsWriteCsvFile5(Class)
'
' 作成者:井上治 URL:https://www.ne.jp/asahi/excel/inoue/ [Excelでお仕事!]
'***************************************************************************************************
' [参照設定]
' ・Microsoft Scription Runtime
'***************************************************************************************************
'変更日付 Rev 変更履歴内容------------------------------------------------------------------------>
'19/12/22(1.00)新規作成
'***************************************************************************************************
Option Explicit
'===================================================================================================
' 共通定数
Private Const g_cnsComm As String = ","
Private Const g_cnsDQ As String = """"
'---------------------------------------------------------------------------------------------------
' 呼び元から引き渡される変数
Private g_lngCntColumns As Long ' 項目カラム数
Private g_lngFirstRow As Long ' 読出し先頭行番号
Private g_lngFirstCol As Long ' 読出し先頭カラム番号
Private g_lngCntMidashiRow As Long ' 見出し行数
Private g_lngColCntMaxRows As Long ' 最終行判定列番号
Private g_blnUseMidashi As Boolean ' 見出し出力有無
Private g_blnUseUnicode As Boolean ' Unicode指定
Private g_strSepChar As String ' 項目境界文字
Private g_strFilename As String ' 出力ファイル名
Private g_strErrMSG As String ' エラーメッセージ
'***************************************************************************************************
' ■■■ 共通サブ処理 ■■■
'***************************************************************************************************
'* 処理名 :Class_Initialize
'* 機能 :クラス初期処理
'---------------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Private Sub Class_Initialize()
'-----------------------------------------------------------------------------------------------
g_lngCntColumns = 0
g_lngFirstRow = 1
g_lngCntMidashiRow = 1
g_lngColCntMaxRows = 1
g_blnUseMidashi = True
g_blnUseUnicode = False
g_strSepChar = g_cnsComm
g_strErrMSG = ""
End Sub
'***************************************************************************************************
' ■■■ ワークシート側からの呼び出し処理 ■■■
'***************************************************************************************************
'* 処理名 :WriteCsvFile5
'* 機能 :CSV形式テキストファイル出力
'---------------------------------------------------------------------------------------------------
'* 返り値 :処理成否(Boolean)
'* 引数 :Arg1 = 処理対象シート(Object)
'* Arg2 = 追記出力指定(Boolean) ※Option
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:引数パラメータの条理チェックは行なっていない(正しい前提)
'***************************************************************************************************
Friend Function WriteCsvFile5(ByVal objSh As Worksheet, _
Optional ByVal blnAppend As Boolean = False) As Boolean
'-----------------------------------------------------------------------------------------------
Dim objFso As FileSystemObject ' FileSystemObject
Dim objTs As TextStream ' TextStream
Dim lngRow As Long ' 行INDEX
Dim lngRowMax As Long ' 最終行INDEX
Dim blnOpen As Boolean ' ファイルOPEN判定
WriteCsvFile5 = False
On Error GoTo WriteCsvFile5_ERROR
Set objFso = New FileSystemObject
' 出力ファイルOPEN
Set objTs = objFso.CreateTextFile(g_strFilename, True, g_blnUseUnicode)
blnOpen = True
With objSh
' 保護解除(PW不対応)
If .ProtectContents Then .Unprotect
' フィルタ解除
If .FilterMode Then .ShowAllData
' 先頭行設定
lngRow = g_lngFirstRow
' 項目カラム数がゼロの場合は先頭行で判定
If g_lngCntColumns = 0 Then
g_lngCntColumns = .Cells(lngRow, .Columns.Count).End(xlToLeft).Column
End If
' 見出し出力無しの時は見出し行数を加算(見出しSKIP)
If Not g_blnUseMidashi Then
lngRow = lngRow + g_lngCntMidashiRow
End If
' 最終行判定
lngRowMax = .Cells(.Rows.Count, g_lngColCntMaxRows).End(xlUp).Row
' 最終行まで繰り返す
Do While lngRow <= lngRowMax
' 1行分のCSV編集・出力
objTs.WriteLine FP_EditCsvRec(objSh, lngRow)
' 次の行へ
lngRow = lngRow + 1
Loop
End With
WriteCsvFile5 = g_strErrMSG = ""
GoTo WriteCsvFile5_EXIT
'===================================================================================================
' エラートラップ
WriteCsvFile5_ERROR:
Call GP_AppendMessage2(Err.Description)
'===================================================================================================
' 終了
WriteCsvFile5_EXIT:
' 出力ファイルCLOSE
If blnOpen Then objTs.Close
Set objFso = Nothing
End Function
'***************************************************************************************************
' ■■■ サブ処理(Private) ■■■
'***************************************************************************************************
'* 処理名 :FP_EditCsvRec
'* 機能 :1行分のCSV編集
'---------------------------------------------------------------------------------------------------
'* 返り値 :1行分の編集結果(String)
'* 引数 :Arg1 = 処理対象シート(Object)
'* Arg2 = 現在行INDEX(Long)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Private Function FP_EditCsvRec(ByVal objSh As Worksheet, ByVal lngRow As Long) As String
'-----------------------------------------------------------------------------------------------
Dim lngCol As Long ' カラムINDEX
Dim strRec As String ' CSVレコード
With objSh
' 先頭カラム処理
strRec = FP_EditCsvFld(.Cells(lngRow, g_lngFirstCol).Value)
lngCol = g_lngFirstCol + 1
' 次カラム以降
Do While lngCol <= g_lngCntColumns
' 1セル分のCSV編集
strRec = strRec & g_strSepChar & FP_EditCsvFld(.Cells(lngRow, lngCol).Value)
' 次の列へ
lngCol = lngCol + 1
Loop
End With
FP_EditCsvRec = strRec
End Function
'***************************************************************************************************
'* 処理名 :FP_EditCsvFld
'* 機能 :1セル分のCSV編集
'---------------------------------------------------------------------------------------------------
'* 返り値 :1セル分の編集結果(String)
'* 引数 :Arg1 = 現在セル値(Variant)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Private Function FP_EditCsvFld(ByVal vntValue As Variant) As String
'-----------------------------------------------------------------------------------------------
Dim lngPos As Long ' 文字位置
Dim blnNeedDQ As Boolean ' ダブルクォーテーション囲い要否
Dim blnNewLine As Boolean ' セル内改行有無
Dim strFld As String ' セル入力項目値
Dim strFldO As String ' CSV出力項目値
Dim strChar As String * 1 ' 1文字
' タイプ判定
Select Case True
Case IsDate(vntValue)
FP_EditCsvFld = CStr(vntValue)
Case IsNumeric(vntValue)
FP_EditCsvFld = CStr(vntValue)
Case Else
strFld = vntValue
' ブランクセルは終了
If Trim(strFld) = "" Then
FP_EditCsvFld = ""
Exit Function
End If
lngPos = 1
' 1文字ずつ判定
Do While lngPos <= Len(strFld)
strChar = Mid(strFld, lngPos, 1)
' 文字判定
Select Case strChar
Case g_cnsDQ ' ダブルクォーテーション
blnNeedDQ = True
' ダブルクォーテーションは連記
strFldO = strFldO & strChar
Case g_cnsComm ' カンマ
blnNeedDQ = True
Case vbCr, vbLf ' 改行コード
blnNewLine = True
End Select
strFldO = strFldO & strChar
' 次の文字へ
lngPos = lngPos + 1
Loop
' セル内改行有無
If blnNewLine Then
blnNeedDQ = True
' CrLfを一旦Lfのみに変換
strFldO = Replace(strFldO, vbCrLf, vbLf)
' Crのみを一旦Lfのみに変換
strFldO = Replace(strFldO, vbCr, vbLf)
' LfをCrLfに変換
strFldO = Replace(strFldO, vbLf, vbCrLf)
End If
' ダブルクォーテーション囲い要否
If blnNeedDQ Then
FP_EditCsvFld = g_cnsDQ & strFldO & g_cnsDQ
Else
FP_EditCsvFld = strFldO
End If
End Select
End Function
'***************************************************************************************************
'* 処理名 :GP_AppendMessage2
'* 機能 :エラーメッセージ累積
'---------------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = 今回メッセージ(String)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:改行を付加して追加
'* 注意事項:
'***************************************************************************************************
Private Sub GP_AppendMessage2(ByVal strAddMSG As String)
'-----------------------------------------------------------------------------------------------
If g_strErrMSG <> "" Then g_strErrMSG = g_strErrMSG & vbCrLf
g_strErrMSG = g_strErrMSG & strAddMSG
End Sub
'***************************************************************************************************
' ■■■ プロパティ ■■■
'***************************************************************************************************
' 項目カラム数(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpCntColumns(ByVal lngValue As Long)
g_lngCntColumns = lngValue
End Property
'===================================================================================================
' 読出し先頭行番号(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpFirstRow(ByVal lngValue As Long)
g_lngFirstRow = lngValue
End Property
'===================================================================================================
' 読出し先頭カラム番号(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpFirstCol(ByVal lngValue As Long)
g_lngFirstCol = lngValue
End Property
'===================================================================================================
' 見出し行数(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpCntMidashiRow(ByVal lngValue As Long)
g_lngCntMidashiRow = lngValue
End Property
'===================================================================================================
' 最終行判定列番号(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpColCntMaxRows(ByVal lngValue As Long)
g_lngColCntMaxRows = lngValue
End Property
'===================================================================================================
' 見出し出力有無(Boolean)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpUseMidashi(ByVal blnValue As Boolean)
g_blnUseMidashi = blnValue
End Property
'===================================================================================================
' Unicode指定(Boolean)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpUseUnicode(ByVal blnValue As Boolean)
g_blnUseUnicode = blnValue
End Property
'===================================================================================================
' 項目境界文字(String)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpSepChar(ByVal strValue As String)
g_strSepChar = strValue
End Property
'===================================================================================================
' 出力ファイル名(String)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpFilename(ByVal strValue As String)
g_strFilename = strValue
End Property
'===================================================================================================
' エラーメッセージ(String)
'---------------------------------------------------------------------------------------------------
Friend Property Get prpErrMSG() As String
prpErrMSG = g_strErrMSG
End Property
'----------------------------------------<< End of Source >>----------------------------------------
'***************************************************************************************************
' CSV形式テキストファイル書き出しクラス clsWriteCsvFile4(Class)
'
' 作成者:井上治 URL:https://www.ne.jp/asahi/excel/inoue/ [Excelでお仕事!]
'***************************************************************************************************
' [参照設定]
' ・Microsoft Scription Runtime
'***************************************************************************************************
'変更日付 Rev 変更履歴内容------------------------------------------------------------------------>
'19/12/22(1.00)新規作成
'***************************************************************************************************
Option Explicit
'===================================================================================================
' 共通定数
Private Const g_cnsComm As String = ","
Private Const g_cnsDQ As String = """"
Private Const g_cnsSQ As String = "'"
Private Const g_cnsSH As String = "#"
'---------------------------------------------------------------------------------------------------
' 呼び元から引き渡される変数
Private g_lngCntColumns As Long ' 項目カラム数
Private g_lngFirstRow As Long ' 読出し先頭行番号
Private g_lngFirstCol As Long ' 読出し先頭カラム番号
Private g_lngCntMidashiRow As Long ' 見出し行数
Private g_lngColCntMaxRows As Long ' 最終行判定列番号
Private g_blnUseUnicode As Boolean ' Unicode指定
Private g_strSepChar As String ' 項目境界文字
Private g_strFilename As String ' 出力ファイル名
'-------------------------------------------------
' ■見出し出力方法
Private g_lngUseMidashi As Long ' 見出し出力方法
' ※「見出し出力方法」指定値の説明
' -1=見出しなし(先頭行からデータとして編集)
' 0=先頭行のみセパレータのみ(下記「カラム単位の編集」は無視)
' 2=先頭行は全て「"」囲い(下記「カラム単位の編集」は無視)
' 4=先頭行は全て「'」囲い(下記「カラム単位の編集」は無視)
' 8=自動判定(セル内改行、「"」、「,」有りは「"」囲い)
' 9=自動判定(セル内改行、「'」、「,」有りは「'」囲い)
'-------------------------------------------------
' ■カラム単位編集方法(テーブル)
Private g_tblColEdit() As Long ' カラム単位編集方法
' ※「カラム単位編集方法」指定値の説明
' 0=セパレータのみ
' 1=数値(ブランク、非数値はゼロ出力)
' 2=文字列(「"」囲い:無条件)
' 3=文字列(「"」囲い:ブランクを除く)
' 4=文字列(「'」囲い:無条件)
' 5=文字列(「'」囲い:ブランクを除く)
' 6=日付(「#」囲い:ブランクを除く)
' 7=日付(「"」囲い:ブランクを除く)
' 8=自動判定(セル内改行、「"」、「,」有りは「"」囲い)
' 9=自動判定(セル内改行、「'」、「,」有りは「'」囲い)
Private g_strErrMSG As String ' エラーメッセージ
'***************************************************************************************************
' ■■■ 共通サブ処理 ■■■
'***************************************************************************************************
'* 処理名 :Class_Initialize
'* 機能 :クラス初期処理
'---------------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :(なし)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Private Sub Class_Initialize()
'-----------------------------------------------------------------------------------------------
g_lngCntColumns = 0
g_lngFirstRow = 1
g_lngCntMidashiRow = 1
g_lngColCntMaxRows = 1
g_lngUseMidashi = 8
g_blnUseUnicode = False
g_strSepChar = g_cnsComm
ReDim g_tblColEdit(0)
g_strErrMSG = ""
End Sub
'***************************************************************************************************
' ■■■ ワークシート側からの呼び出し処理 ■■■
'***************************************************************************************************
'* 処理名 :WriteCsvFile4
'* 機能 :CSV形式テキストファイル出力
'---------------------------------------------------------------------------------------------------
'* 返り値 :処理成否(Boolean)
'* 引数 :Arg1 = 処理対象シート(Object)
'* Arg2 = 追記出力指定(Boolean) ※Option
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:引数パラメータの条理チェックは行なっていない(正しい前提)
'***************************************************************************************************
Friend Function WriteCsvFile4(ByVal objSh As Worksheet, _
Optional ByVal blnAppend As Boolean = False) As Boolean
'-----------------------------------------------------------------------------------------------
Dim objFso As FileSystemObject ' FileSystemObject
Dim objTs As TextStream ' TextStream
Dim lngRow As Long ' 行INDEX
Dim lngRowDTop As Long ' データ開始行INDEX
Dim lngRowMax As Long ' 最終行INDEX
Dim blnOpen As Boolean ' ファイルOPEN判定
WriteCsvFile4 = False
On Error GoTo WriteCsvFile4_ERROR
Set objFso = New FileSystemObject
' 出力ファイルOPEN
Set objTs = objFso.CreateTextFile(g_strFilename, True, g_blnUseUnicode)
blnOpen = True
With objSh
' 保護解除(PW不対応)
If .ProtectContents Then .Unprotect
' フィルタ解除
If .FilterMode Then .ShowAllData
' 先頭行設定
lngRow = g_lngFirstRow
' 項目カラム数がゼロの場合は先頭行で判定
If g_lngCntColumns = 0 Then
g_lngCntColumns = .Cells(lngRow, .Columns.Count).End(xlToLeft).Column
End If
' 見出し出力無しの時は見出し行数を加算(見出しSKIP)
If g_lngUseMidashi < 0 Then
lngRow = lngRow + g_lngCntMidashiRow
lngRowDTop = lngRow
Else
lngRowDTop = lngRow + g_lngCntMidashiRow
End If
' 最終行判定
lngRowMax = .Cells(.Rows.Count, g_lngColCntMaxRows).End(xlUp).Row
' 見出し編集(データ開始行の前まで)
Do While lngRow < lngRowDTop
' 1行分のCSV編集・出力(見出し用)
objTs.WriteLine FP_EditCsvMidashi(objSh, lngRow)
' 次の行へ
lngRow = lngRow + 1
Loop
' 最終行まで繰り返す
Do While lngRow <= lngRowMax
' 1行分のCSV編集・出力
objTs.WriteLine FP_EditCsvRec(objSh, lngRow)
' 次の行へ
lngRow = lngRow + 1
Loop
End With
WriteCsvFile4 = g_strErrMSG = ""
GoTo WriteCsvFile4_EXIT
'===================================================================================================
' エラートラップ
WriteCsvFile4_ERROR:
Call GP_AppendMessage2(Err.Description)
'===================================================================================================
' 終了
WriteCsvFile4_EXIT:
' 出力ファイルCLOSE
If blnOpen Then objTs.Close
Set objFso = Nothing
End Function
'***************************************************************************************************
' ■■■ サブ処理(Private) ■■■
'***************************************************************************************************
'* 処理名 :FP_EditCsvRec
'* 機能 :1行分のCSV編集
'---------------------------------------------------------------------------------------------------
'* 返り値 :1行分の編集結果(String)
'* 引数 :Arg1 = 処理対象シート(Object)
'* Arg2 = 現在行INDEX(Long)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Private Function FP_EditCsvRec(ByVal objSh As Worksheet, ByVal lngRow As Long) As String
'-----------------------------------------------------------------------------------------------
Dim lngCol As Long ' カラムINDEX
Dim strRec As String ' CSVレコード
With objSh
' 先頭カラム処理
strRec = FP_EditCsvFld(.Cells(lngRow, g_lngFirstCol).Value, g_tblColEdit(g_lngFirstCol))
lngCol = g_lngFirstCol + 1
' 次カラム以降
Do While lngCol <= g_lngCntColumns
' 1セル分のCSV編集
strRec = strRec & g_strSepChar & FP_EditCsvFld(.Cells(lngRow, lngCol).Value, _
g_tblColEdit(lngCol))
' 次の列へ
lngCol = lngCol + 1
Loop
End With
FP_EditCsvRec = strRec
End Function
'***************************************************************************************************
'* 処理名 :FP_EditCsvMidashi
'* 機能 :1行分のCSV編集(見出し用)
'---------------------------------------------------------------------------------------------------
'* 返り値 :1行分の編集結果(String)
'* 引数 :Arg1 = 処理対象シート(Object)
'* Arg2 = 現在行INDEX(Long)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Private Function FP_EditCsvMidashi(ByVal objSh As Worksheet, ByVal lngRow As Long) As String
'-----------------------------------------------------------------------------------------------
Dim lngCol As Long ' カラムINDEX
Dim strRec As String ' CSVレコード
With objSh
' 先頭カラム処理
strRec = FP_EditCsvFld(.Cells(lngRow, g_lngFirstCol).Value, g_lngUseMidashi)
lngCol = g_lngFirstCol + 1
' 次カラム以降
Do While lngCol <= g_lngCntColumns
' 1セル分のCSV編集
strRec = strRec & g_strSepChar & FP_EditCsvFld(.Cells(lngRow, lngCol).Value, g_lngUseMidashi)
' 次の列へ
lngCol = lngCol + 1
Loop
End With
FP_EditCsvMidashi = strRec
End Function
'***************************************************************************************************
'* 処理名 :FP_EditCsvFld
'* 機能 :1セル分のCSV編集
'---------------------------------------------------------------------------------------------------
'* 返り値 :1セル分の編集結果(String)
'* 引数 :Arg1 = 現在セル値(Variant)
'* Arg2 = カラム編集方法(Long)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:
'* 注意事項:
'***************************************************************************************************
Private Function FP_EditCsvFld(ByVal vntValue As Variant, _
ByVal lngColEdit As Long) As String
'-----------------------------------------------------------------------------------------------
Dim lngPos As Long ' 文字位置
Dim blnNeedDQ As Boolean ' ダブルクォーテーション囲い要否
Dim blnNewLine As Boolean ' セル内改行有無
Dim strFld As String ' セル入力項目値
Dim strFldO As String ' CSV出力項目値
Dim strChar As String * 1 ' 1文字
Dim strSepChar As String ' 文字列境界文字
' 文字列境界文字
Select Case lngColEdit
Case 4, 5, 9: strSepChar = g_cnsSQ
Case Else: strSepChar = g_cnsDQ
End Select
strFld = vntValue
' カラム編集方法判別
Select Case lngColEdit
Case 0 ' セパレータのみ
FP_EditCsvFld = strFld
Case 1 ' 数値(ブランク、非数値はゼロ出力)
If IsNumeric(strFld) Then
FP_EditCsvFld = strFld
Else
FP_EditCsvFld = "0"
End If
Case 2, 4 ' 文字列(「"」囲い:無条件)
FP_EditCsvFld = strSepChar & strFld & strSepChar
Case 3, 5, 7 ' 文字列(「"」囲い:ブランクを除く)
If Trim(strFld) = "" Then
FP_EditCsvFld = ""
Else
FP_EditCsvFld = strSepChar & strFld & strSepChar
End If
Case 6 ' 日付(「#」囲い:ブランクを除く)
If Trim(strFld) = "" Then
FP_EditCsvFld = ""
Else
FP_EditCsvFld = g_cnsSH & strFld & g_cnsSH
End If
Case Else ' 自動判定
' タイプ判定
Select Case True
Case IsDate(vntValue)
FP_EditCsvFld = strFld
Case IsNumeric(vntValue)
FP_EditCsvFld = strFld
Case Else
' ブランクセルは終了
If Trim(strFld) = "" Then
FP_EditCsvFld = ""
Exit Function
End If
lngPos = 1
' 1文字ずつ判定
Do While lngPos <= Len(strFld)
strChar = Mid(strFld, lngPos, 1)
' 文字判定
Select Case strChar
Case strSepChar ' ダブルクォーテーション
blnNeedDQ = True
' ダブルクォーテーションは連記
strFldO = strFldO & strChar
Case g_cnsComm ' カンマ
blnNeedDQ = True
Case vbCr, vbLf ' 改行コード
blnNewLine = True
End Select
strFldO = strFldO & strChar
' 次の文字へ
lngPos = lngPos + 1
Loop
' セル内改行有無
If blnNewLine Then
blnNeedDQ = True
' CrLfを一旦Lfのみに変換
strFldO = Replace(strFldO, vbCrLf, vbLf)
' Crのみを一旦Lfのみに変換
strFldO = Replace(strFldO, vbCr, vbLf)
' LfをCrLfに変換
strFldO = Replace(strFldO, vbLf, vbCrLf)
End If
' ダブルクォーテーション囲い要否
If blnNeedDQ Then
FP_EditCsvFld = strSepChar & strFldO & strSepChar
Else
FP_EditCsvFld = strFldO
End If
End Select
End Select
End Function
'***************************************************************************************************
'* 処理名 :GP_AppendMessage2
'* 機能 :エラーメッセージ累積
'---------------------------------------------------------------------------------------------------
'* 返り値 :(なし)
'* 引数 :Arg1 = 今回メッセージ(String)
'---------------------------------------------------------------------------------------------------
'* 作成日 :2019年12月22日
'* 作成者 :井上 治
'* 更新日 :2019年12月22日
'* 更新者 :井上 治
'* 機能説明:改行を付加して追加
'* 注意事項:
'***************************************************************************************************
Private Sub GP_AppendMessage2(ByVal strAddMSG As String)
'-----------------------------------------------------------------------------------------------
If g_strErrMSG <> "" Then g_strErrMSG = g_strErrMSG & vbCrLf
g_strErrMSG = g_strErrMSG & strAddMSG
End Sub
'***************************************************************************************************
' ■■■ プロパティ ■■■
'***************************************************************************************************
' 項目カラム数(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpCntColumns(ByVal lngValue As Long)
g_lngCntColumns = lngValue
End Property
'===================================================================================================
' 読出し先頭行番号(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpFirstRow(ByVal lngValue As Long)
g_lngFirstRow = lngValue
End Property
'===================================================================================================
' 読出し先頭カラム番号(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpFirstCol(ByVal lngValue As Long)
g_lngFirstCol = lngValue
End Property
'===================================================================================================
' 見出し行数(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpCntMidashiRow(ByVal lngValue As Long)
g_lngCntMidashiRow = lngValue
End Property
'===================================================================================================
' 最終行判定列番号(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpColCntMaxRows(ByVal lngValue As Long)
g_lngColCntMaxRows = lngValue
End Property
'===================================================================================================
' 見出し出力方法(Long)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpUseMidashi(ByVal lngValue As Long)
g_lngUseMidashi = lngValue
End Property
'===================================================================================================
' Unicode指定(Boolean)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpUseUnicode(ByVal blnValue As Boolean)
g_blnUseUnicode = blnValue
End Property
'===================================================================================================
' 項目境界文字(String)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpSepChar(ByVal strValue As String)
g_strSepChar = strValue
End Property
'===================================================================================================
' 出力ファイル名(String)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpFilename(ByVal strValue As String)
g_strFilename = strValue
End Property
'===================================================================================================
' カラム単位編集方法(String)
'---------------------------------------------------------------------------------------------------
Friend Property Let prpColEdit(ByVal strValue As String)
Dim lngPos As Long ' 文字位置INDEX
Dim lngPosMax As Long ' 文字位置上限
lngPosMax = Len(strValue)
ReDim g_tblColEdit(1 To lngPosMax)
' カラム単位編集方法をテーブル化
For lngPos = 1 To lngPosMax
g_tblColEdit(lngPos) = CLng(Mid(strValue, lngPos, 1))
Next lngPos
End Property
'===================================================================================================
' エラーメッセージ(String)
'---------------------------------------------------------------------------------------------------
Friend Property Get prpErrMSG() As String
prpErrMSG = g_strErrMSG
End Property
'----------------------------------------<< End of Source >>----------------------------------------
![]() |
←WriteCSVFile5.zip (65KB) |
