QB50 CubeSats to deploy from ISS #2



● (No.953) QB50 CubeSats to deploy from ISS #2 (2017年5月20日)
 ------------------------------------------------------------

QB50-CubeSat Mission updated schedule on 25-26 May 2017
http://amsat-uk.org/2017/05/20/qb50-iss-cubesats-phase-2/
http://www.asahi-net.or.jp/~ei7m-wkt/numbr926.htm#qb50update
http://twitter.com/hashtag/qb50
http://twitter.com/QB50Mission







3 more in Space:
congratulations to US01 (Challenger), CN03 (NJUST-1),
& AU02 (UNSW-EC0) deployed from the ISS at 05:25 GMT!

Next #QB50 #CubeSat deployment shifted 10' earlier:
GR01, CN02 & AZ02 will be deployed at 08:35 GMT.

Successful 2nd #QB50 #CubeSat deployment of the day!
Congratulations to GR01 (DUTHsat), CN02 (LilacSat-1),
and AZ02 (nSIGHT)!

Successful 3rd #QB50 #Cubesat deployment of today!
Congratulations to ES01 (QBITO), FI01 (Aalto-2) and
AU01 (SUSat) teams!

And now KR03 (SNUSAT-1b) #cubesats is also in space! Congrats!
Congratulations to AU03 (i-INSPIRE II), UA01 (KPI-SAU-1), and
KR02 (SNUSAT-1), successfully deployed in space at 04:00:00 UTC!

CA03 (ExAlta1) deployment in 20 minutes!
On call with @NanoRacks to see it all live. EXCITED!

Successful 11th #QB50 #cubesat deployment from the ISS in 10 days!
Congratulations to CN04 (Aoxiang-1), TR01 (BeEagleSat) & US02 (Atlantis).

HAVELSAT           42700U 98067LH
SOMP2              42701U 98067LJ
COLUMBIA           42702U 98067LK
SGSAT              42703U 98067LL
CXBN-2             42704U 98067LM
ICECUBE            42705U 98067LN
PHOENIX            42706U 98067LP
X-CUBESAT          42707U 98067LQ
OBEE50-LTU-OC      42708U 98067LR
ALTAIR PATHFINDER  42711U 98067LS
SHARC              42712U 98067LT
ZA-AEROSAT         42713U 98067LU
LINK               42714U 98067LV
CSUNSAT 1          42715U 98067LW
UPSAT              42716U 98067LX
SPACECUBE          42717U 98067LY
HOOPOE             42718U 98067LZ
CHALLENGER         42721U 98067MA
NJUST-1            42722U 98067MB
UNSW-EC0           42723U 98067MC
DUTHSAT            42724U 98067MD
LILACSAT-1         42725U 98067ME
NSIGHT-1           42726U 98067MF
SNUSAT-1           42727U 98067MG
QBITO              42728U 98067MH
AALTO-2            42729U 98067MJ
SUSAT              42730U 98067MK
I-INSPIRE II       42731U 98067ML
POLYITAN-2-SAU     42732U 98067MM
SNUSAT-1b          42733U 98067MN
EXALTA-1           42734U 98067MP
AOXIANG-1          42735U 98067MQ
BEEAGLESAT         42736U 98067MR
ATLANTIS           42737U 98067MS

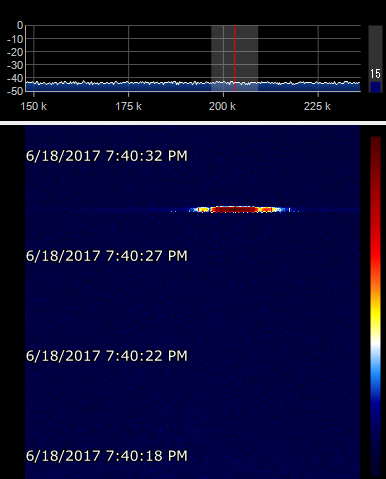

UNSW-EC0 spectrum





オーストラリア衛星 UNSW-EC0 (ON02AU) の 9k6 GMSK信号が捉えられています。
次のサイトに IQ.wav が保存されていましたので、再生デコードしてみました。
30秒ごとに送信されています。プロトコルの関係で、受信データは LINUX上で
ないと解析できません。  Windows上でも解析できます。

http://janvgils.home.xs4all.nl/download/QB50/
http://github.com/daniestevez/gr-satellites
http://github.com/daniestevez/gr-satellites/tree/master/apps
http://destevez.net/2017/06/viterbi-decoding-for-nanocom-u482c/

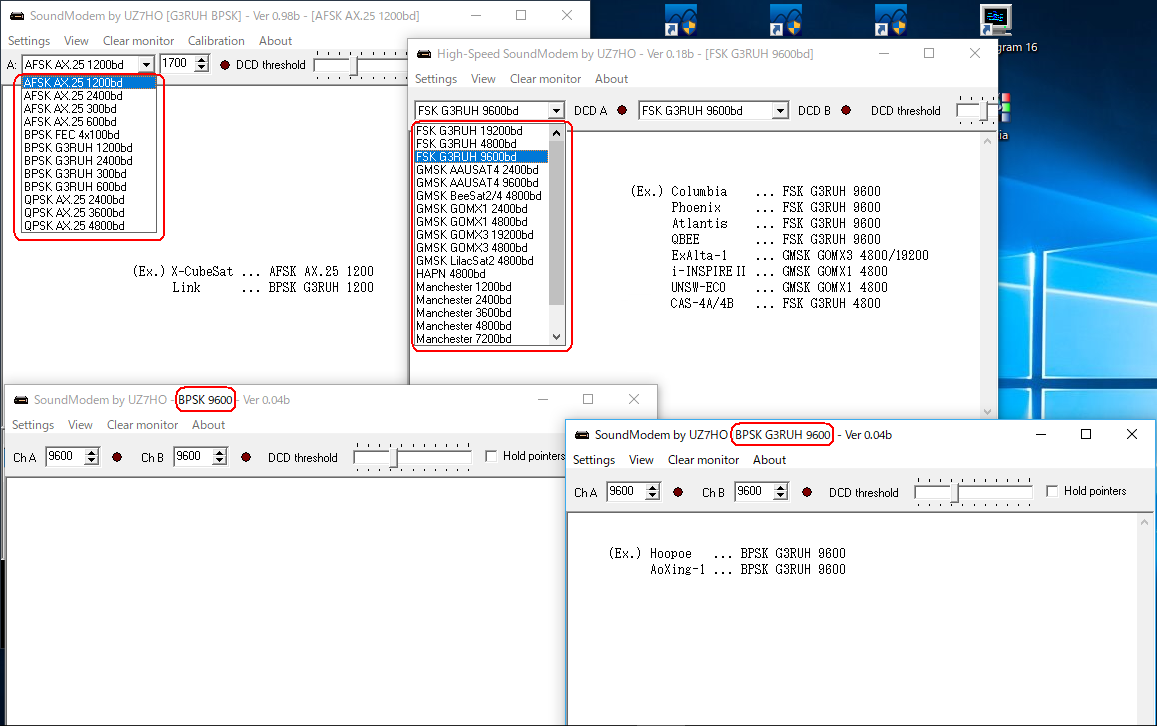

HS_SoundModem update

> I added FEC procedure to GOMX1 decoder, now HS_Soundmodem018
> is able to decode UNSW-EC0 and i-INSPIRE II satellites.
